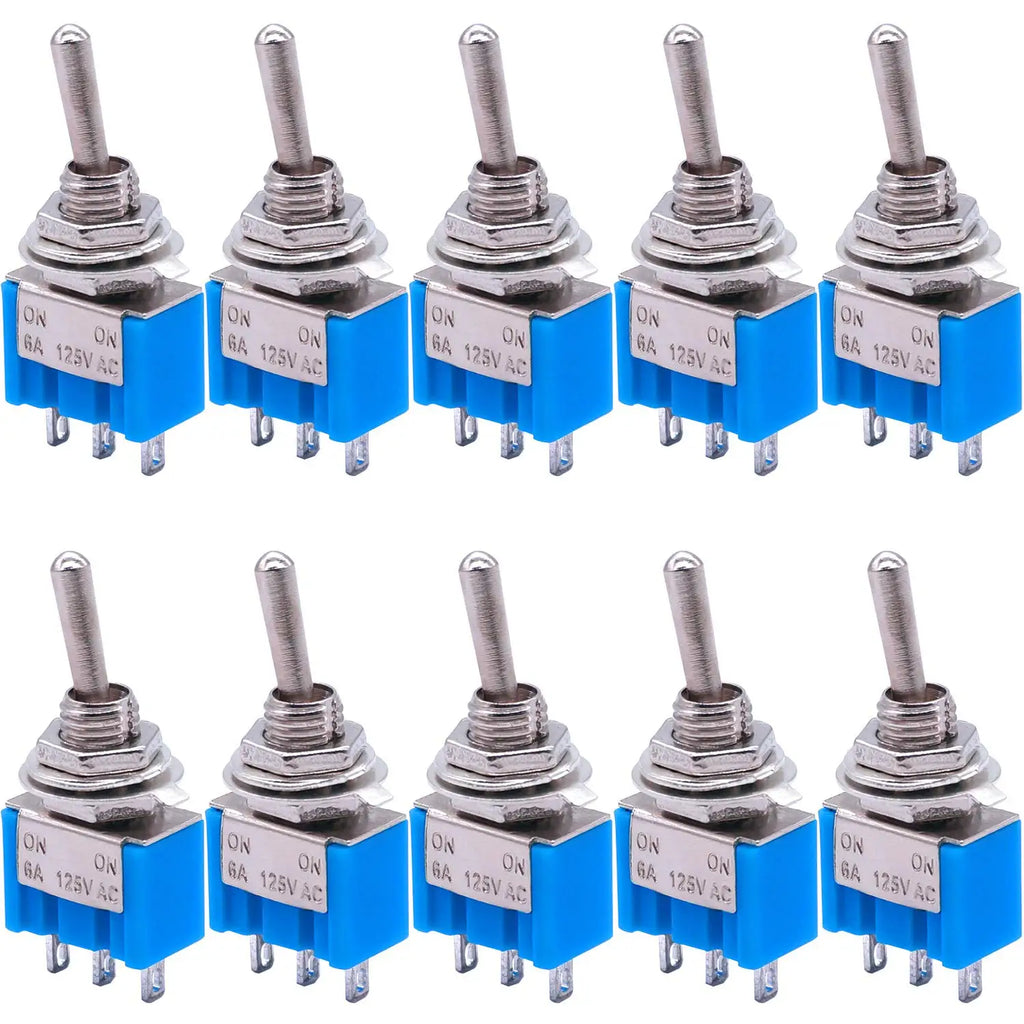

Mini SPDT Toggle Switch - 6mm Thread (125V 6A)
This compact Single Pole Double Throw (SPDT) toggle switch is designed for low-power electronic projects, model building, and control panels. Featuring a standard 6mm mounting thread, these mini switches are ideal for space-constrained applications where reliable switching is required. Available in both 2-position (ON-ON) and 3-position (ON-OFF-ON) latching configurations to suit your specific circuit needs.
Product Features
- SPDT (Single Pole Double Throw) configuration for versatile circuit switching.
- Latching mechanism ensures the switch stays in the selected position until moved.
- Sub-miniature size perfect for compact control boxes and DIY electronics.
- High-quality metal lever with a smooth, tactile switching action.
- Threaded neck with included hardware for easy panel mounting.
- Three-pin solder lug terminals for secure and permanent connections.
Technical Specifications
- Switch Type: Toggle (SPDT)
- Action: Latching
- Positions: 2-Position (ON-ON) or 3-Position (ON-OFF-ON)
- Voltage & Current Rating: AC 125V 6A / AC 250V 3A
- Thread Diameter: 6mm (0.24 inches)
- Pin Count: 3-Pin
- Contact Resistance: 20M Ohm Max
- Insulation Resistance: 1000M Ohm 500V DC
Package Contents
- 1 Mini SPDT Toggle Switch
- 2 Hex Mounting Nuts
- 1 Flat Washer
- 1 Locking Washer
