SKD08 Micro IC Test Clips (10-Piece Set)

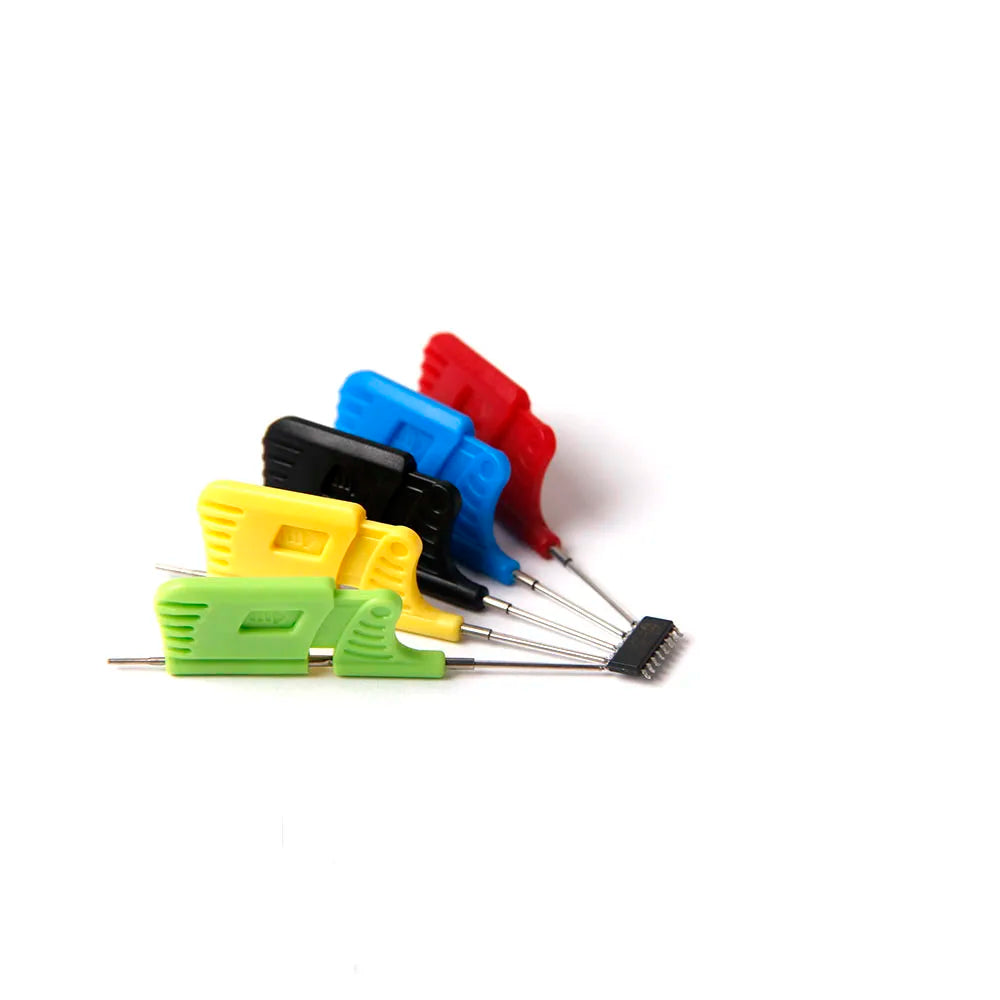

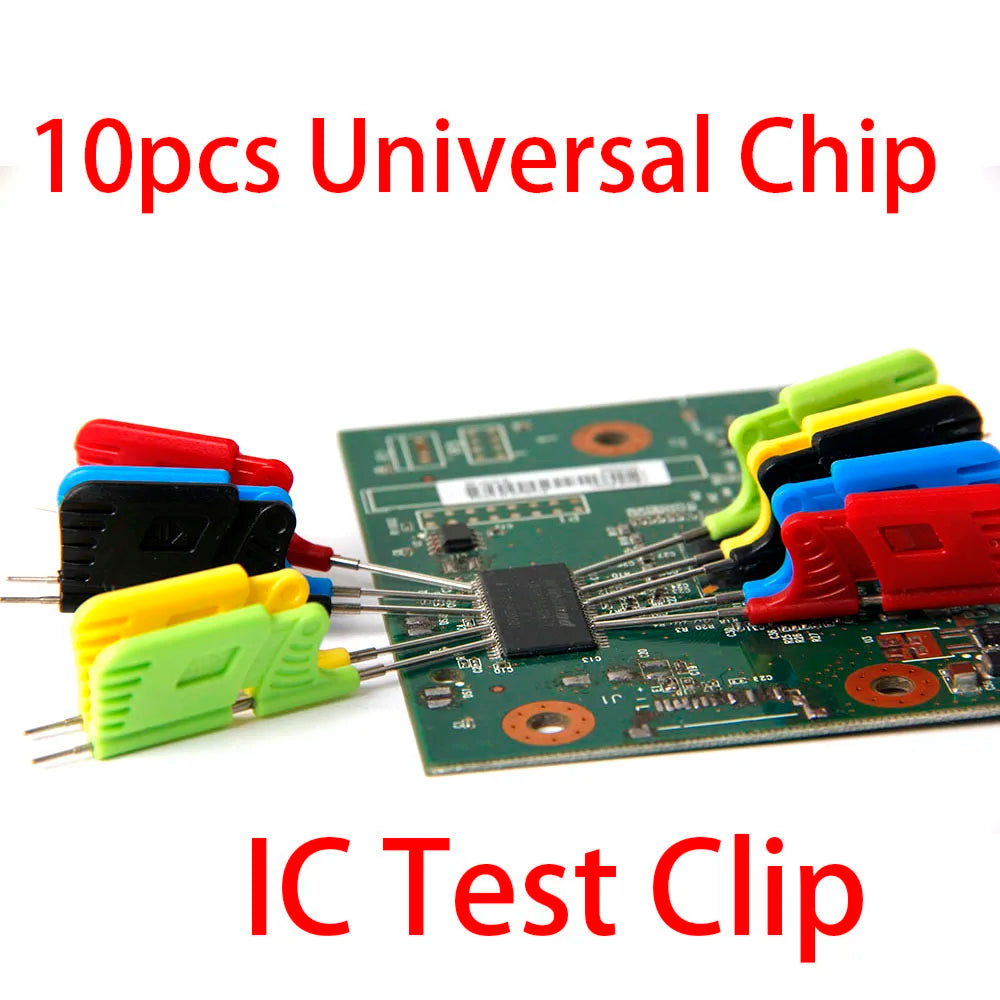

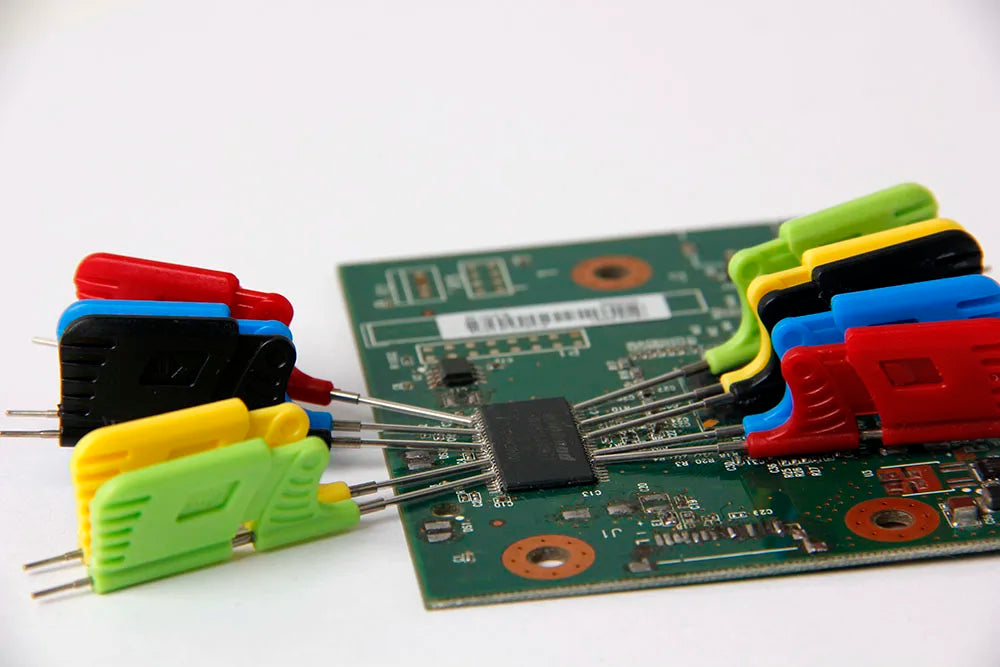

The SKD08 test clips are designed for making secure electrical connections to ultra-fine pitch integrated circuit (IC) pins. With a thickness of only 0.8mm, these clamps can attach to individual leads on high-density chips (such as SOIC, TSSOP, and MSOP) where standard alligator clips or larger test hooks would cause a short circuit. They are primarily used for logic analysis, debugging, and in-circuit programming.
Product Features
- Ultra-Thin Design: 0.8mm width allows for side-by-side placement on chips with very small pin spacing.
- Secure Grip: Powerful internal spring and precision hook ensure the clip remains attached even during movement.
- Insulated Body: High-temperature plastic construction prevents accidental shorts between adjacent pins.
- Universal Compatibility: The tail end accepts standard DuPont female jumpers or thin gauge test leads.
- Color-Coded: Set includes multiple colors to help track different signal lines (Data, Clock, VCC, GND).
Technical Specifications
- Model: SKD08
- Minimum Pitch: 0.8mm
- Voltage Rating: 40V Max
- Material: Gold-plated copper (hooks) and PA (insulated housing)
- Total Length: Approx. 40mm
- Quantity: 10 pieces per set
Usage Guide
| Action | Method |
|---|---|
| Opening the Clip | Gently press the rear of the clamp; the front hook will extend. |
| Attaching | Position the hook around the IC pin and release the rear button. |
| Connecting Leads | Slide a female DuPont wire onto the metal pin at the back of the clamp. |
| Removal | Always press the release button before pulling to avoid bending the IC pins. |
Package Contents

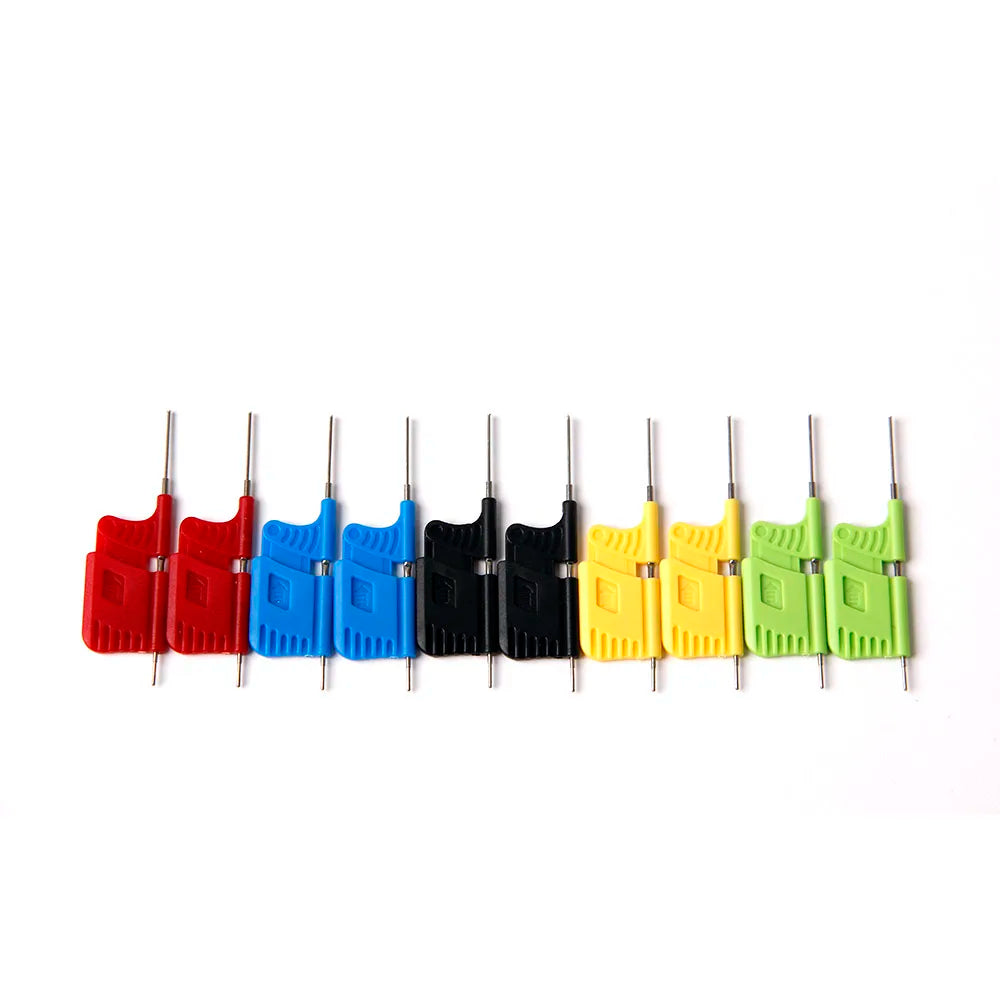

- 10x SKD08 Micro IC Test Clamps (Assorted Colors)
