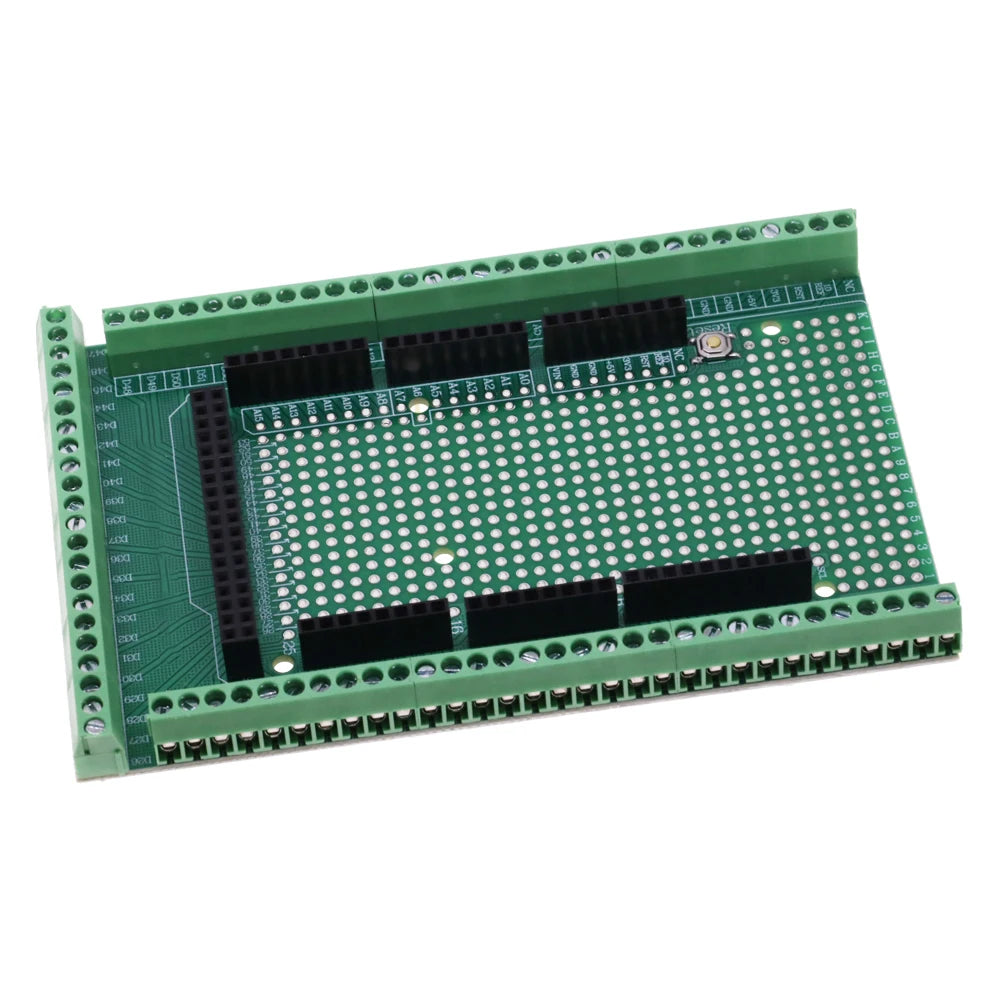

Prototype Screw Terminal Block Shield Kit for Arduino Mega 2560 R3
This professional-grade prototyping shield is designed specifically for the Arduino Mega 2560 R3. It combines a large prototyping area with secure screw terminal blocks, allowing you to move your project from a fragile breadboard to a robust, permanent installation. The kit features high-quality FR-4 fiberglass and "stackable" headers, meaning you can still plug additional shields on top of this board. This is an unassembled kit; soldering is required.
Product Features
- Complete Terminal Access: Breaks out all 84 pins of the Arduino Mega to secure screw terminals for vibration-resistant wiring.
- Large Prototyping Area: Features a standard 2.54mm pitch grid for soldering custom sensors, ICs, and discrete components directly to the shield.
- Stackable Design: Includes long-pin female headers that pass through the PCB, allowing you to stack other Mega-compatible shields on top.
- High-Quality Construction: Dual copper layer FR-4 PCB with tinned pads for easy soldering and excellent conductivity.
- Flexible Mounting: Multiple mounting holes and terminal configurations allow for various installation methods in enclosures or control panels.
Technical Specifications
PCB Details
- Material: FR-4 Fiber Glass (Dual Copper Layers)
- Dimensions: 120mm x 78mm
- Prototyping Grid Pitch: 2.54mm (0.1") / Hole Diameter: 0.8mm
- Terminal Block Pitch: 3.5mm (0.138") / Hole Diameter: 1.2mm
Terminal Block Specs
- Pitch: 3.5mm Mini Terminal Blocks
- Total Pin Count: 84 Pins (Includes 24x 3-pole and 6x 2-pole blocks)
- Wire Range: 26~16 AWG
- Hardware: M2 Steel Screws / Brass Cage and Pin Headers
- Strip Length: 5mm
Female Header Sockets
- Pitch: 2.54mm (0.1")
- Pin Length: 15mm (Extra long for stackability)
- Included: 1x 10-pin, 5x 8-pin, 1x 18-pin (Dual Row)
Assembly Guide
| Component | Installation Note |
|---|---|
| Female Headers | Solder these first. Ensure they are perfectly vertical so the shield aligns with the Arduino Mega pins. |
| Terminal Blocks | Group the 2-pole and 3-pole blocks to fill the outer perimeters. Ensure the wire entry holes face outward. |
| Prototyping Area | Use this space for permanent components like voltage regulators, level shifters, or pull-up resistors. |

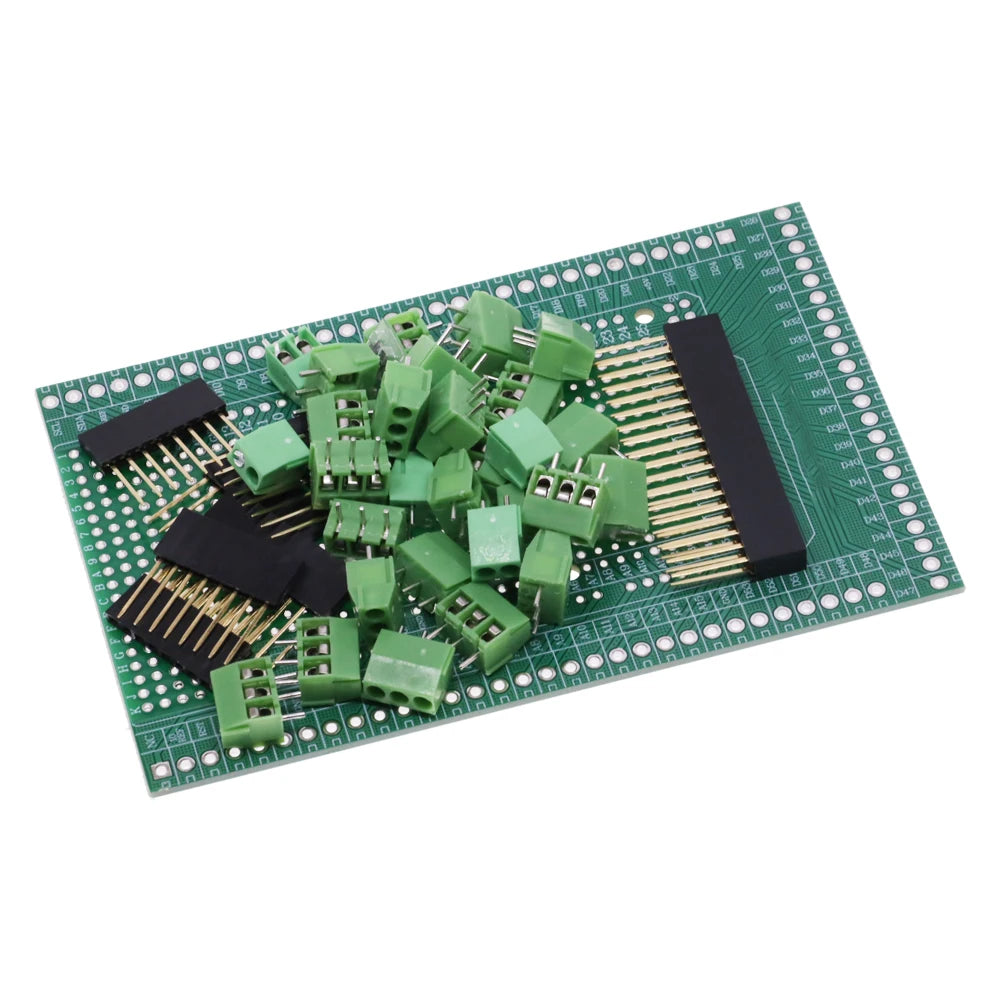

Package Contents
- 1 Prototype PCB for Arduino Mega 2560
- 30 Terminal Blocks (24x 3-pole, 6x 2-pole)
- 1 Set of Long-Pin Female Headers (Stackable)
