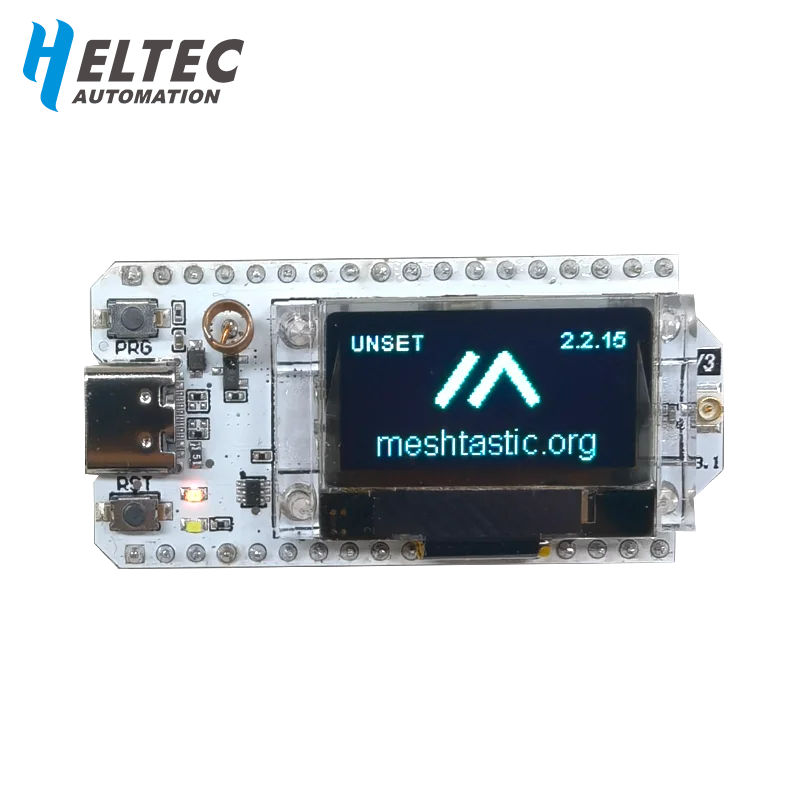

Heltec LoRa32 V3 (SX1262, ESP32-S3, Meshtastic Compatible)
The Heltec LoRa32 V3 is a feature-rich development board combining the power of the ESP32-S3 microcontroller with the Semtech SX1262 LoRa transceiver. Designed for long-range wireless communication, this board is Meshtastic-compatible out of the box, making it ideal for mesh networking, telemetry, and IoT applications. With built-in Wi-Fi, Bluetooth 5.0, a high-efficiency antenna, and an onboard OLED display, the LoRa32 V3 delivers reliable performance for both experimentation and deployment in remote or low-power environments.
Key Features
-
Processor: ESP32-S3 dual-core Xtensa® LX7 @ up to 240 MHz
-
Wireless Connectivity:
-
2.4 GHz Wi-Fi (802.11 b/g/n)
-
Bluetooth 5.0 (LE)
-
-
LoRa Radio: Semtech SX1262 transceiver
-
Frequency range: 868 / 915 MHz (varies by model)
-
High sensitivity and long-range capability
-
-
Display: 0.96" OLED (128×64 resolution)
-
Memory: 8 MB Flash, 512 KB PSRAM
-

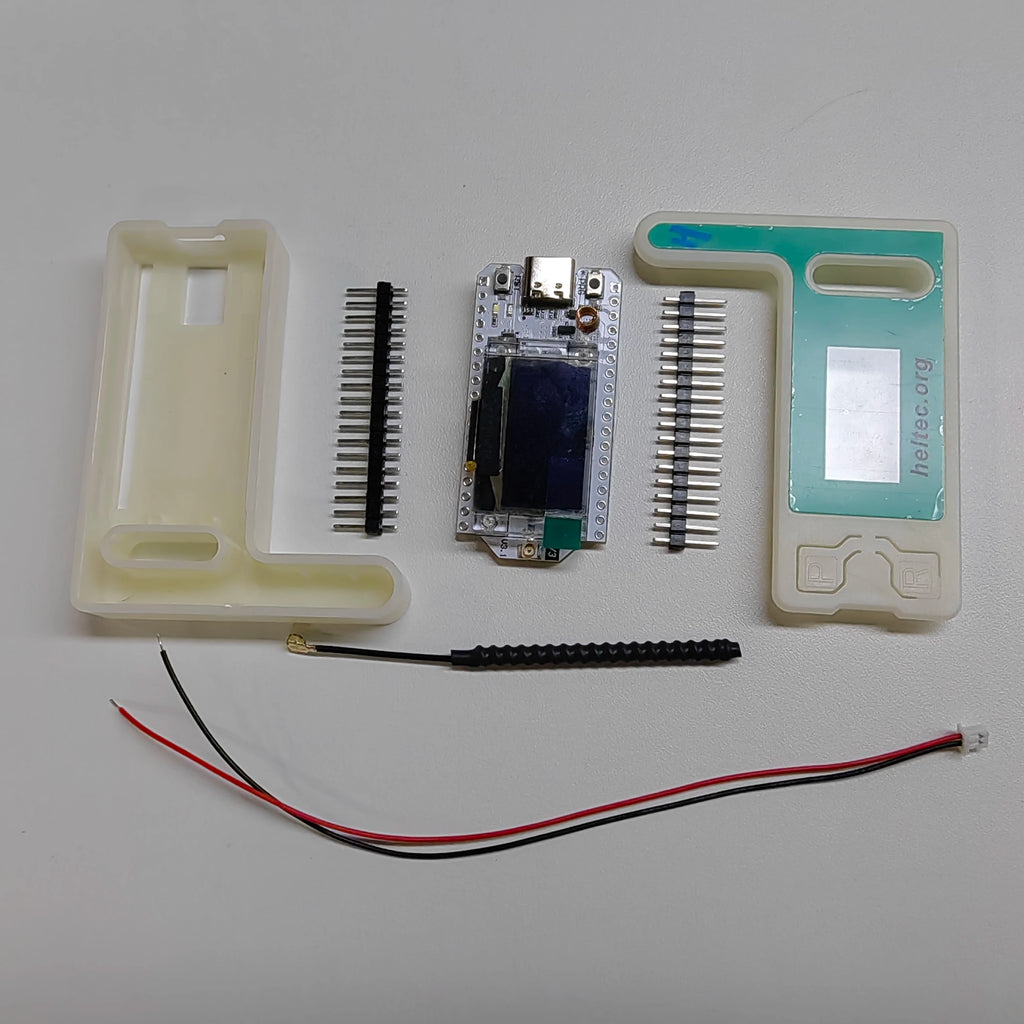

Antenna: Onboard IPEX (u.FL) connector and included antenna
-
Power Supply: 3.3V logic, 5V via USB-C or LiPo battery
-
Battery Support: Integrated charger and JST-PH connector for 3.7V LiPo
-
Interfaces: SPI, I²C, UART, ADC, PWM, GPIO
-
Programming Support: Compatible with Arduino IDE, ESP-IDF, and PlatformIO
-
Meshtastic: Fully supported firmware for decentralized communication networks
-
Dimensions: 68 × 25 × 8 mm
