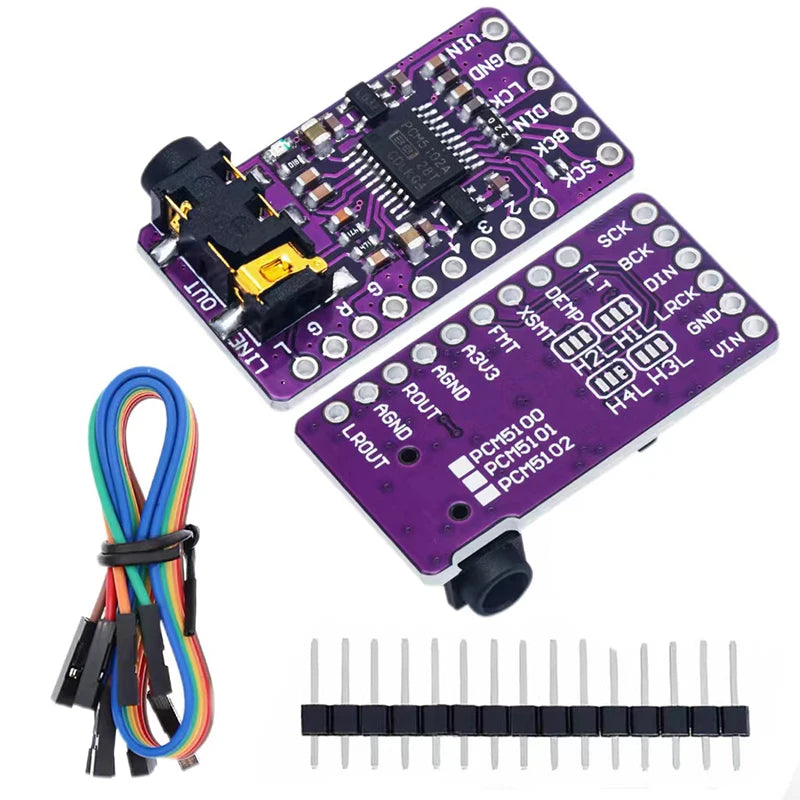

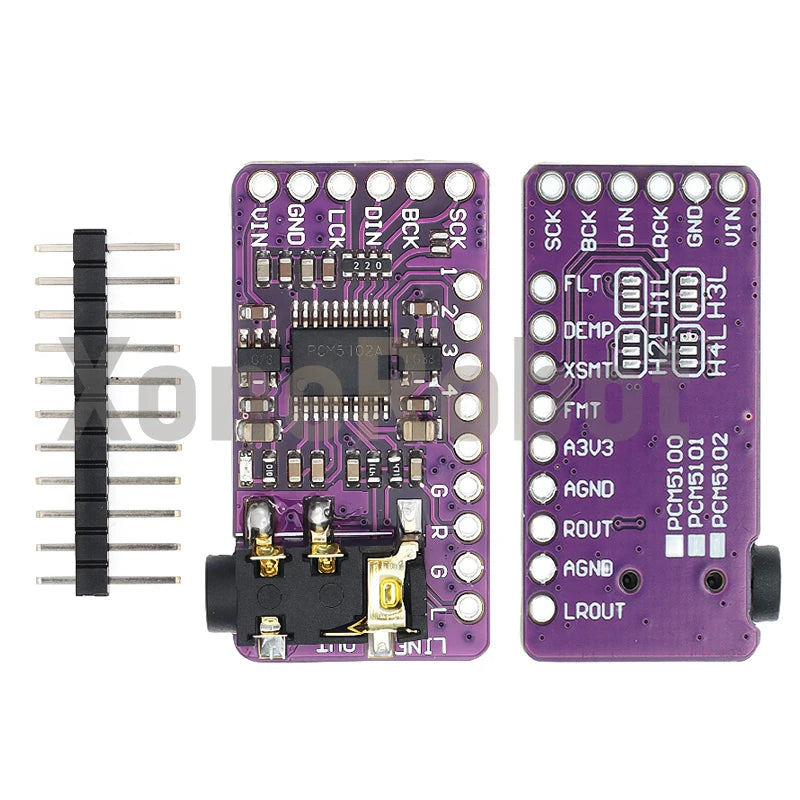

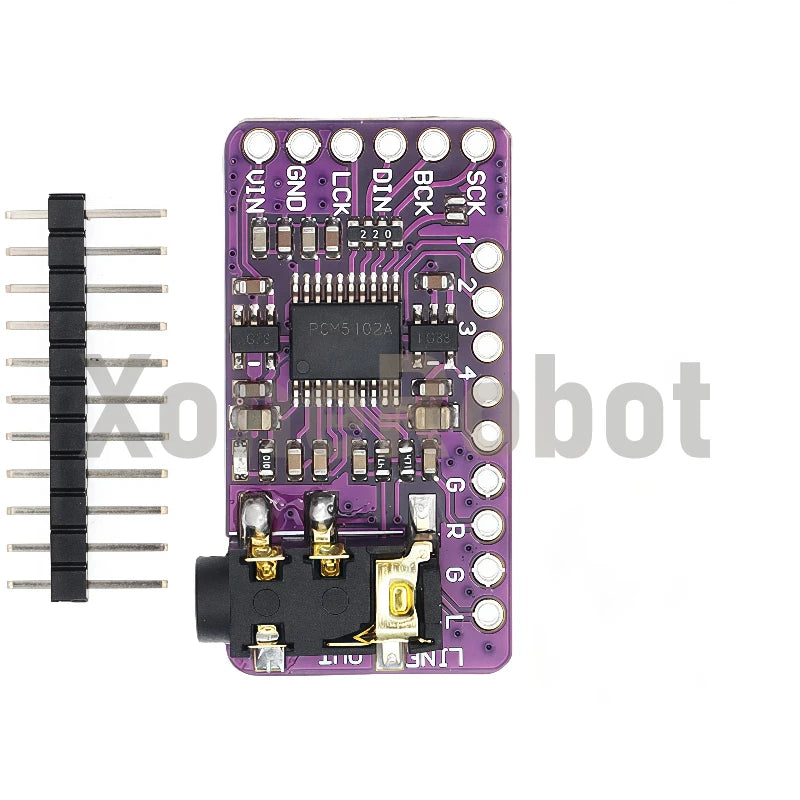

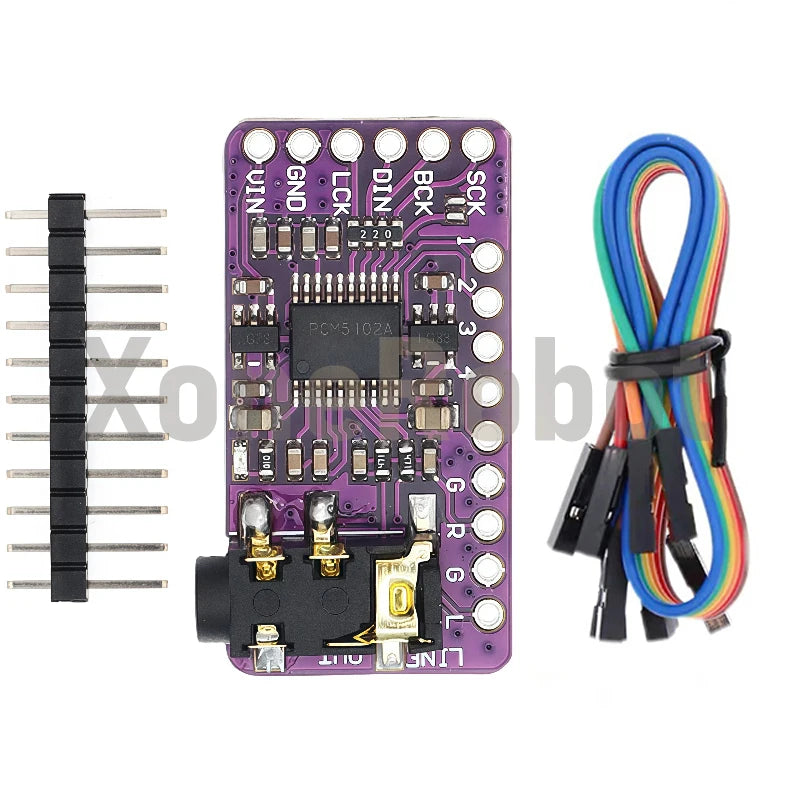

Product Description
The GY-PCM5102 module is a high-quality, stereo Digital-to-Analog Converter (DAC) board designed to convert digital I²S audio signals into a crisp, analog line-level output. Utilizing the acclaimed PCM5102A chip from Texas Instruments, this module is a simple and effective way to upgrade the audio performance of microcontrollers and single-board computers like the Raspberry Pi or Arduino, bypassing their typically low-quality integrated audio solutions.
Overview
The PCM5102A chip is a 24-bit, 384kHz sample rate DAC that eliminates external output filtering components due to its integrated charge pump, which creates an internal negative power rail. This results in a line-level 2.1V RMS output directly from the board without needing additional circuitry or a dedicated amplifier for headphones/speakers (though an amp may still be needed depending on the speaker requirements). The module is known for its excellent signal-to-noise ratio and low distortion.
Key Features and Specifications
- DAC Chip: Texas Instruments PCM5102A
- Interface: I²S (Inter-IC Sound) digital audio input
- Resolution: 16, 24, and 32-bit audio data support
- Sample Rate: Supports sample rates up to 384 kHz
- Output Voltage: 2.1V RMS line-level stereo analog output
- Signal-to-Noise Ratio (SNR): 112 dB typical
- Dynamic Range: 112 dB typical
- Total Harmonic Distortion (THD+N): -93 dB typical
- Operating Voltage: 5V DC power supply
- No Jitter: Integrated clock generation (eliminates need for master clock input)

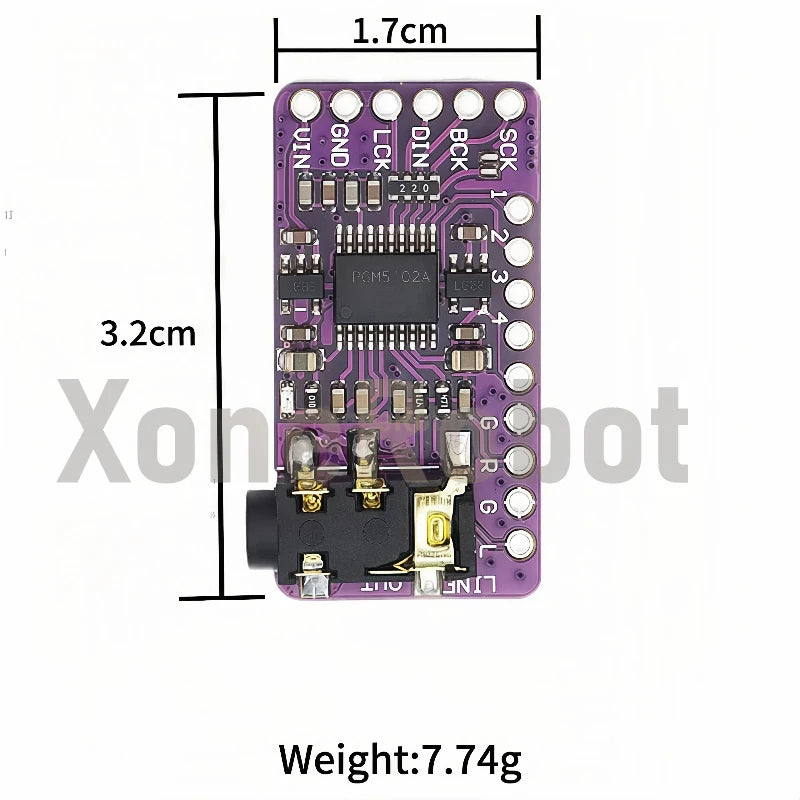

- Compact Size: Small form factor (often 30mm x 25mm) with standard header pins for easy integration.
Potential Applications
The GY-PCM5102 is essential for projects that demand high-fidelity audio output from digital sources:
- Raspberry Pi Audio Player: Creating a high-quality headless music streamer (e.g., Volumio, RuneAudio).
- Arduino Audio Projects: Outputting crisp sound from microcontrollers that have I²S support (like ESP32).
- DIY Audio Equipment: Building custom digital audio players (DAPs) or DAC hats for existing systems.
- IoT Audio/Voice Output: Enhancing the voice feedback or alarm sounds in smart home devices.
- Sound Synthesis Projects: Providing clear, low-noise analog output for microcontroller-based synthesizers.
