Potentiometer Demonstration Kit B1K 2K 5K 10K 20K 50K 100K 250K 500K 1M
$10.99

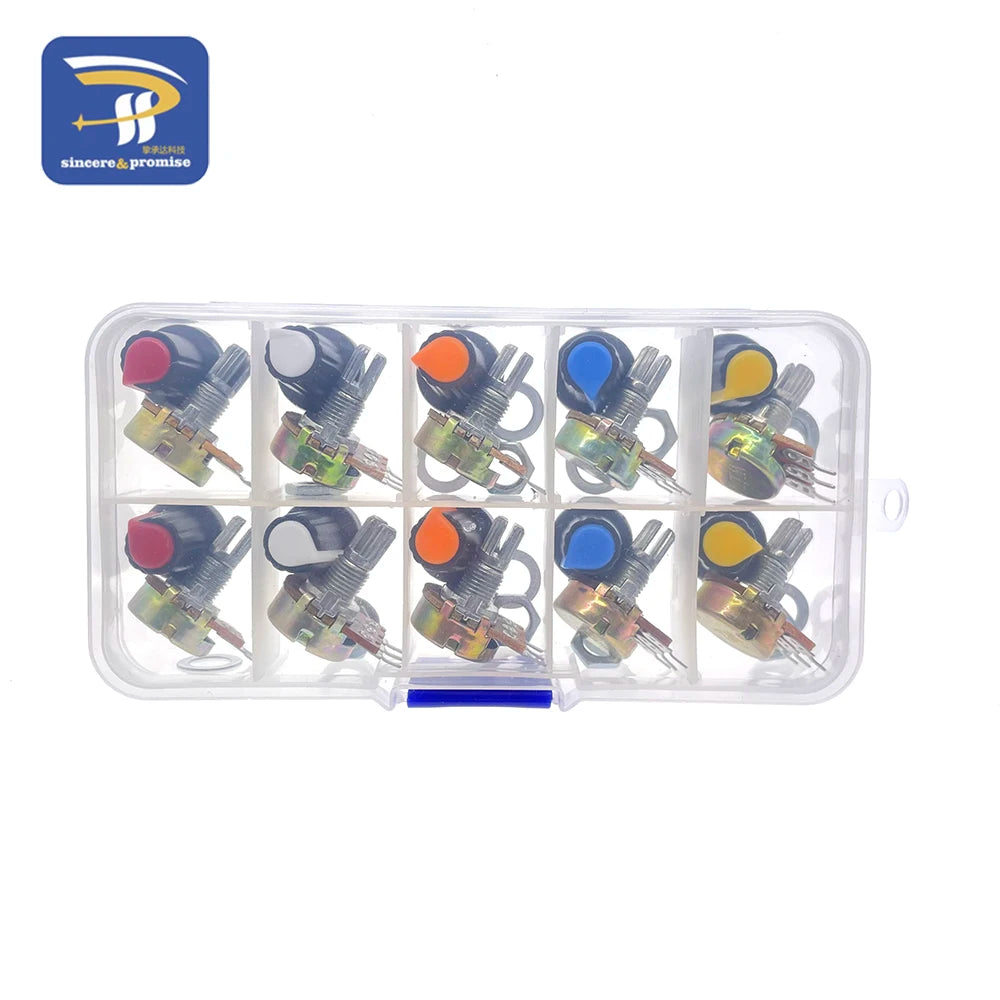

Potentiometer Assortment Kit - 10 Values (B1K to B1M)

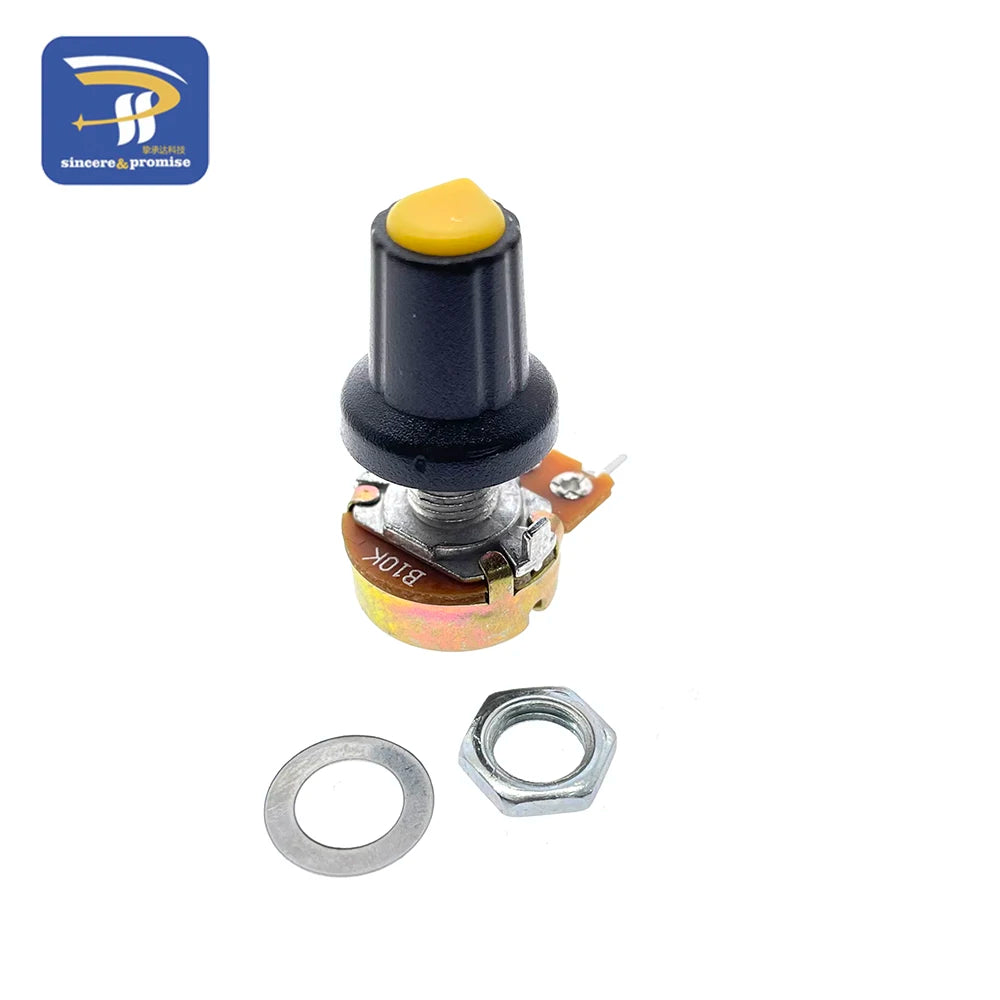

This kit contains a variety of linear taper (Type B) rotary potentiometers, covering common resistance values used in analog circuit design, volume control, and sensor calibration. These are standard 3-pin WH148 style potentiometers designed for panel mounting or breadboard prototyping. Each unit includes a matching nut and washer for installation.
Product Features
- Linear Taper (B-Type): The resistance changes linearly with the rotation of the shaft.
- Standard 15mm Shaft: Compatible with most common plastic and aluminum knurled knobs.
- Panel Mount Design: Each potentiometer comes with a hex nut and flat washer.
- 3-Pin Layout: Standard configuration for use as a variable resistor (rheostat) or voltage divider.
- Durable Carbon Film: Designed for consistent performance across repeated adjustments.
Technical Specifications
- Type: Rotary Potentiometer (Single Linear)
- Model: WH148
- Shaft Length: 15mm (including thread)
- Shaft Diameter: 6mm
- Mounting Hole Diameter: 7mm
- Tolerance: ±20%
- Power Rating: 0.125W
- Max Operating Voltage: 200V
Included Resistance Values
This kit includes 10 different values
| Marking | Resistance Value |
|---|---|
| B1K | 1k Ohm |
| B2K | 2k Ohm |
| B5K | 5k Ohm |
| B10K | 10k Ohm |
| B20K | 20k Ohm |
| B50K | 50k Ohm |
| B100K | 100k Ohm |
| B250K | 250k Ohm |
| B500K | 500k Ohm |
| B1M | 1M Ohm |
Package Contents
- Matching Hex Nuts and Washers for each unit
