RAK4631 Meshtastic Kit - SX1262 RAK19007 Base Board with Antenna
$79.99
RAK4631 Meshtastic Kit (SX1262 LoRa + nRF52840)
The RAK4631 Meshtastic Kit is a professional-grade LoRaWAN and Meshtastic-compatible developer set designed for long-range wireless communication. This kit combines the RAK4631 WisBlock Core—which features a high-performance Nordic nRF52840 MCU and a Semtech SX1262 LoRa transceiver—with the RAK19007 WisBlock Base Board. It is optimized for ultra-low power consumption and is factory-preloaded with Meshtastic firmware for out-of-the-box mesh networking capabilities in the 868MHz and 915MHz bands.
Product Features
- Dual Wireless Connectivity: Features LoRa for long-range data (up to 15km+) and Bluetooth Low Energy (BLE 5.0) for easy configuration via smartphone.
- Meshtastic Ready: Specifically designed for off-grid mesh networks; allows for decentralized text messaging and GPS tracking without cellular service.
- WisBlock Ecosystem: Modular design allows for the addition of GPS, sensors, and displays via simple plug-and-play IO slots.
- Ultra-Low Power: Engineered for battery and solar applications, with deep sleep currents in the microamp range.
- SX1262 Transceiver: Higher efficiency and improved receiver sensitivity compared to older SX1276 modules.
Technical Specifications
- Microcontroller: Nordic nRF52840 (32-bit ARM® Cortex®-M4F)
- LoRa Chipset: Semtech SX1262
- Frequency Support: 863MHz – 928MHz (Includes EU868, US915, AU915, and KR920)
- BLE Version: Bluetooth 5.0 (Internal nRF52840)
- Interface: USB Type-C (for programming and charging)
- Battery Support: Integrated Li-Po charging circuit (3.7V) via JST connector
- Operating Voltage: 3.3V (Internal) / 5V (USB)

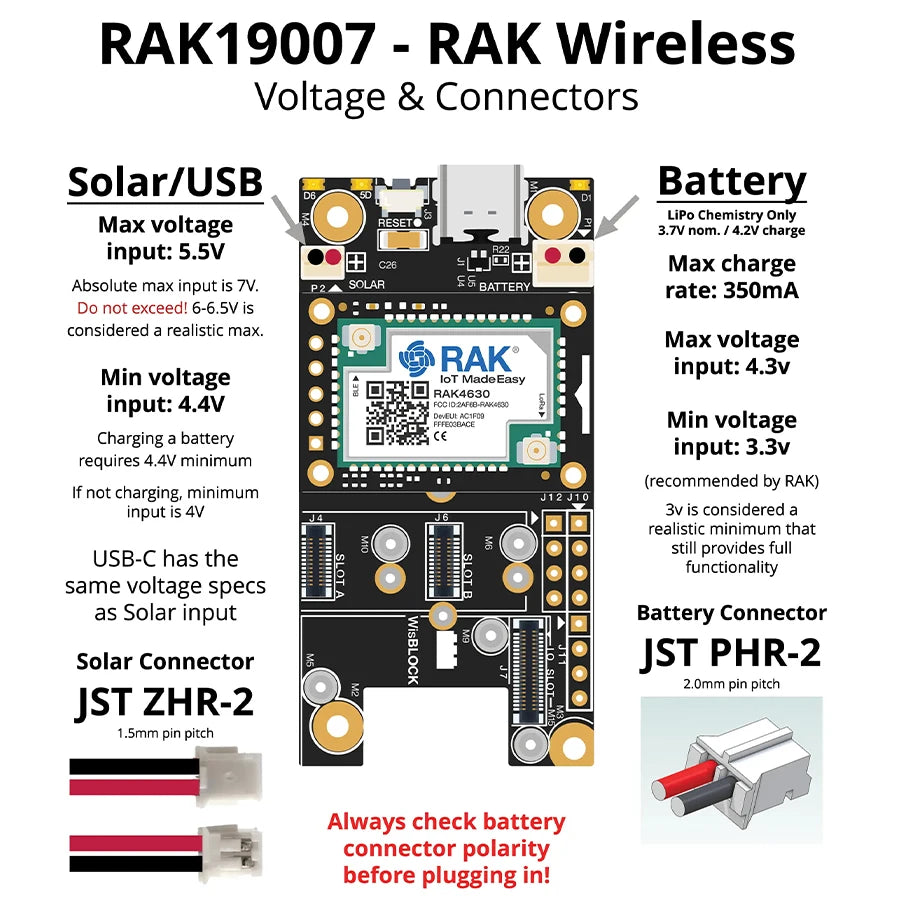

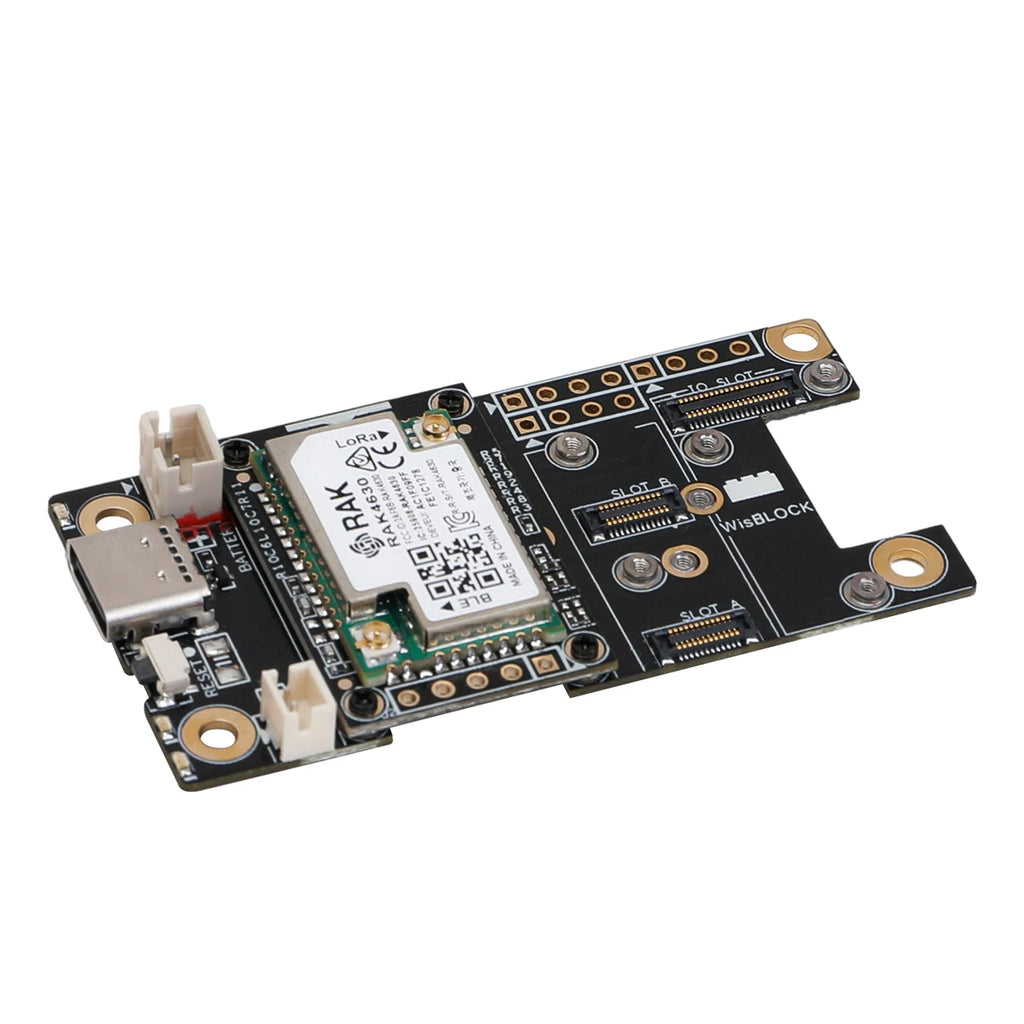

WisBlock Base Board (RAK19007) Layout
| Slot/Connector | Function | Description |
|---|---|---|
| WisCore Slot | MCU Connection | Dedicated slot for the RAK4631 module. |
| WisIO Slots | Expansion | Supports 4x Sensor slots and 1x IO slot for GPS/OLED/Sensors. |
| USB-C | Power/Data | Programming and Lithium battery charging. |
| JST PH 2.0 | Battery | Connection for 3.7V Li-Po/Li-Ion batteries. |
| Solar Pin | Charging | Support for 5V solar panel input. |
Antenna Installation & Safety
- LoRa Antenna: Must be connected to the IPEX connector labeled "LoRa" or "ANT" before powering the device. Operating without an antenna will damage the SX1262 chip.
- BLE Antenna: The nRF52840 requires the smaller internal antenna for Bluetooth pairing with the Meshtastic mobile app.
- Mounting: Use the included screws to secure the RAK4631 to the RAK19007 base board to ensure stable electrical contact during vibration.
Package Contents
- 1x RAK4631 WisBlock Core Module (nRF52840 + SX1262)
- 1x RAK19007 WisBlock Base Board

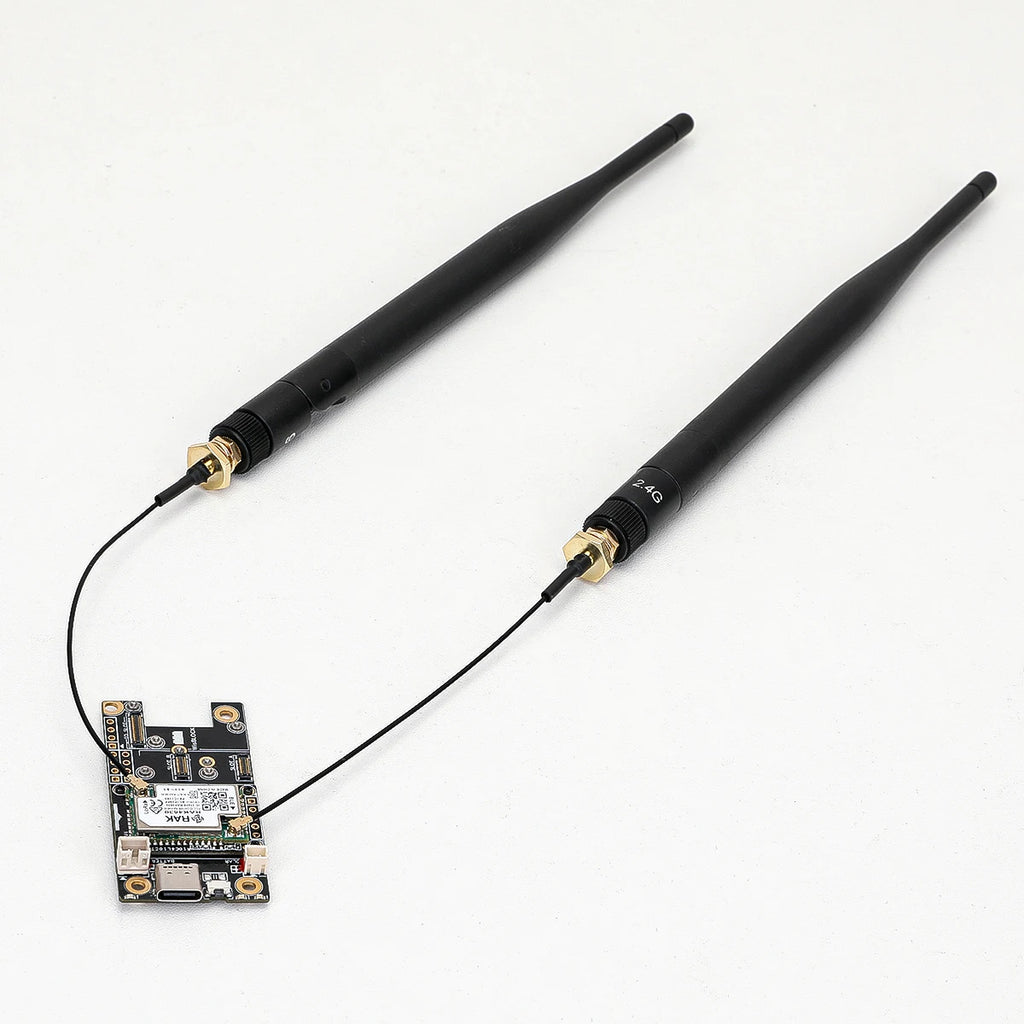

- 1x High-Gain LoRa Antenna (868/915MHz)
- 1x BLE Antenna
- 1x USB Type-C Cable
- 1x Set of Mounting Screws
