Standard & High-Torque Servo Motor Series
This series of servo motors covers the full spectrum of DIY motion control, from lightweight hobby projects to high-torque robotics. Whether you need the precision of the micro SG90 for a small camera gimbal or the raw power of the metal-geared MG996R for a robotic arm, these servos provide reliable 180-degree rotation (typically) and are compatible with standard PWM signals from Arduino, ESP32, and RC receivers.
Product Options & Specifications
| Model | Gear Type | Stall Torque (4.8V) | Weight | Best For |
|---|---|---|---|---|

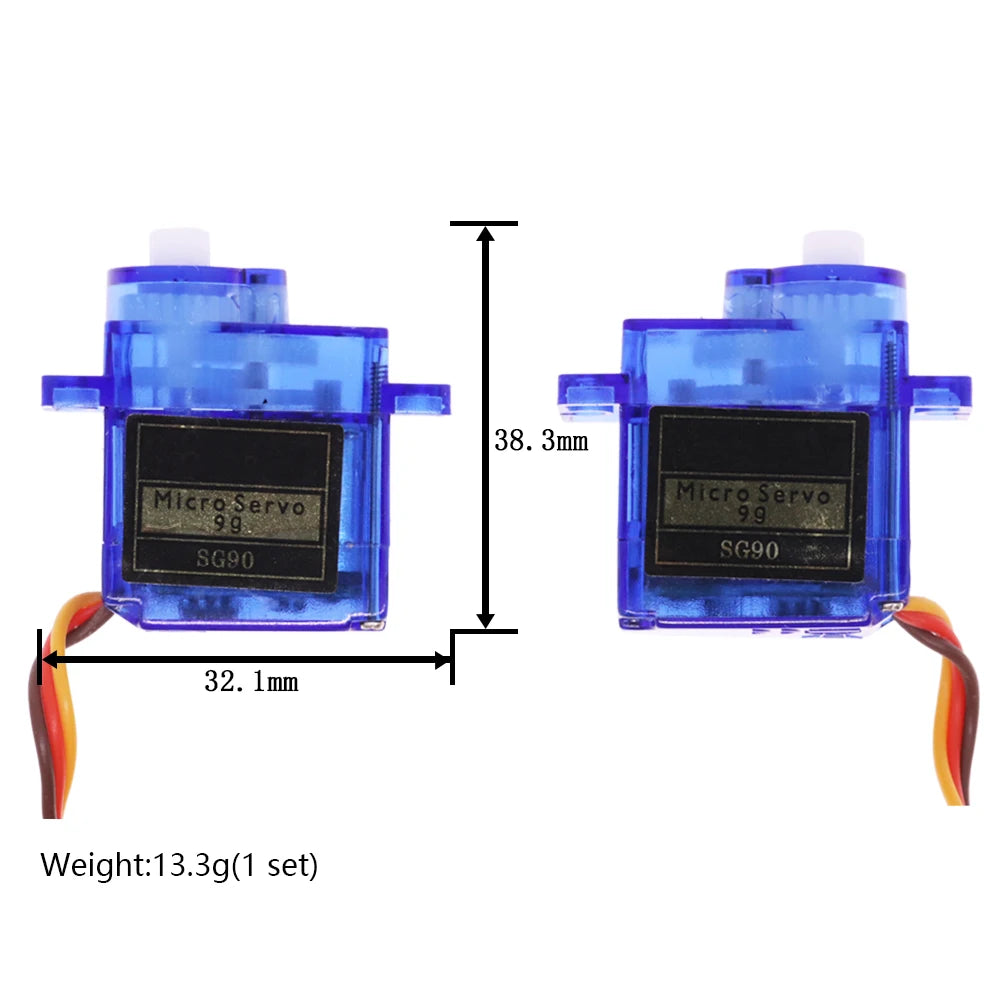

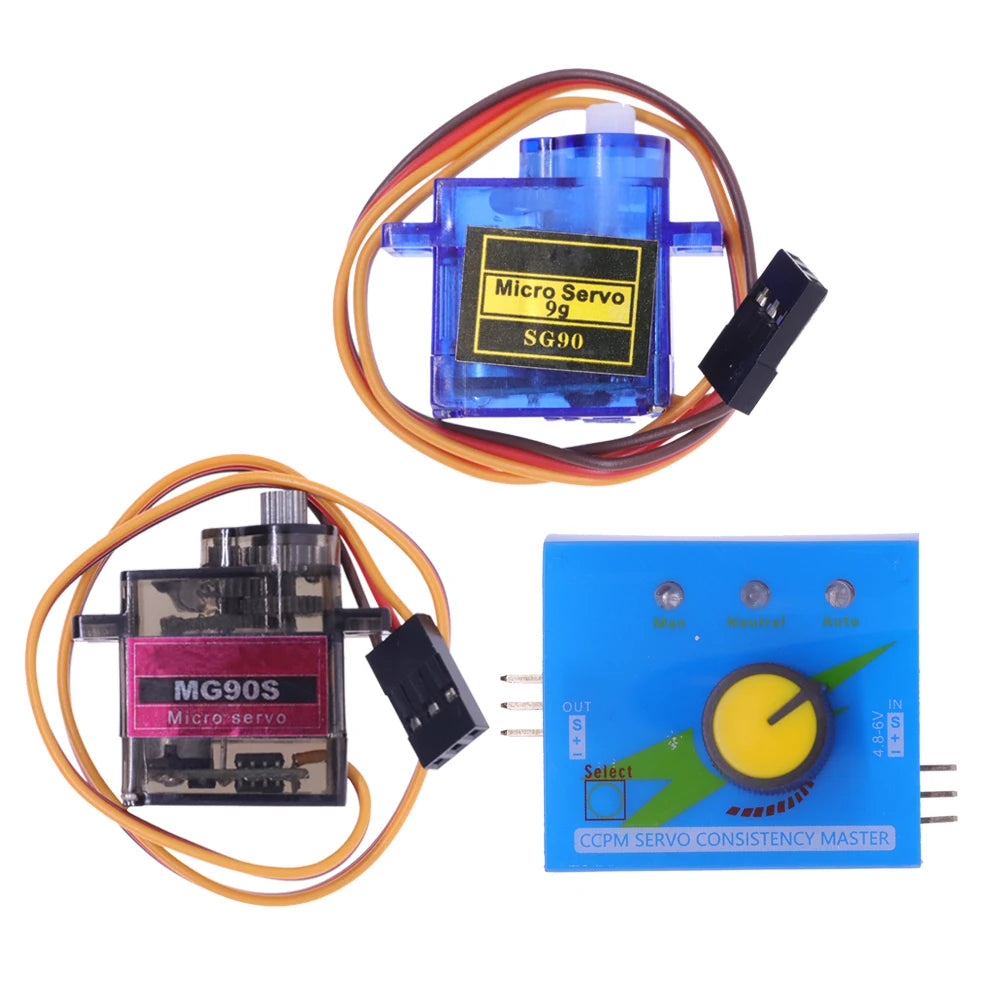

| SG90 | Plastic | 1.2 kg-cm | 9g | Lightweight aircraft, basic tutorials |

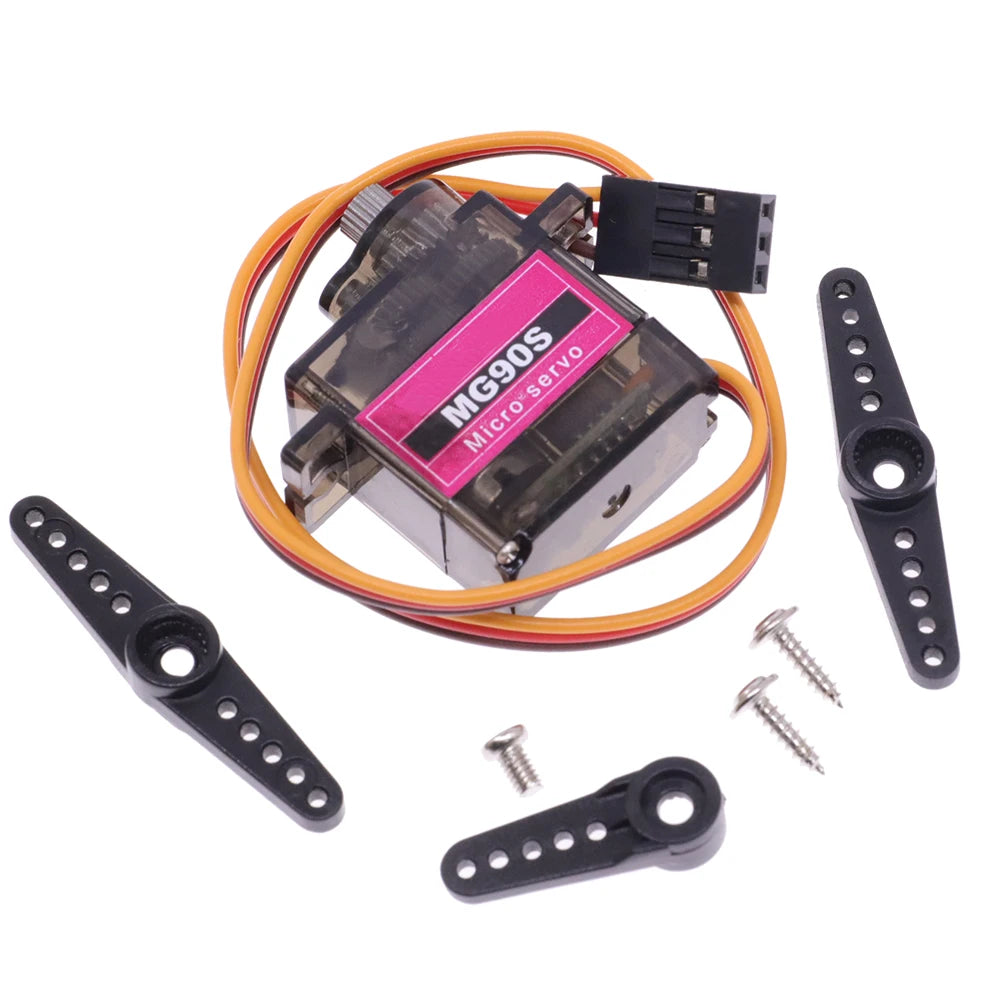

| MG90S | Metal | 1.8 kg-cm | 13.4g | Small RC cars, micro robotic grippers |
| MG995 | Metal | 8.5 kg-cm | 55g | Large scale RC, heavy-duty automation |
| MG996R | Metal | 9.4 kg-cm | 55g | High-torque robotic arms, steering |
Common Features
- Universal Compatibility: Standard 3-pin connector (GND, VCC, Signal) works with all major microcontrollers.
- Complete Hardware Kit: Each servo includes a variety of "horns" (arms) and mounting screws for different mechanical setups.
- Wide Voltage Range: Most models operate efficiently between 4.8V and 6.6V.
- 180° Range: Provides precise angular control (usually 0 to 180 degrees) via Pulse Width Modulation (PWM).
Technical Specifications
- Operating Speed: 0.1s/60° to 0.17s/60° (Model dependent)
- Dead Band Width: 1µs - 5µs
- Connector Wire Length: 150mm (Micro) / 300mm (Standard)
- Spline Count: 21T (Micro) / 25T (Standard)
Wiring Configuration
| Wire Color | Function | Connection |
|---|---|---|
| Brown / Black | GND | Ground |
| Red | VCC | Power (4.8V - 6V) |
| Orange / White | Signal | PWM Output Pin |

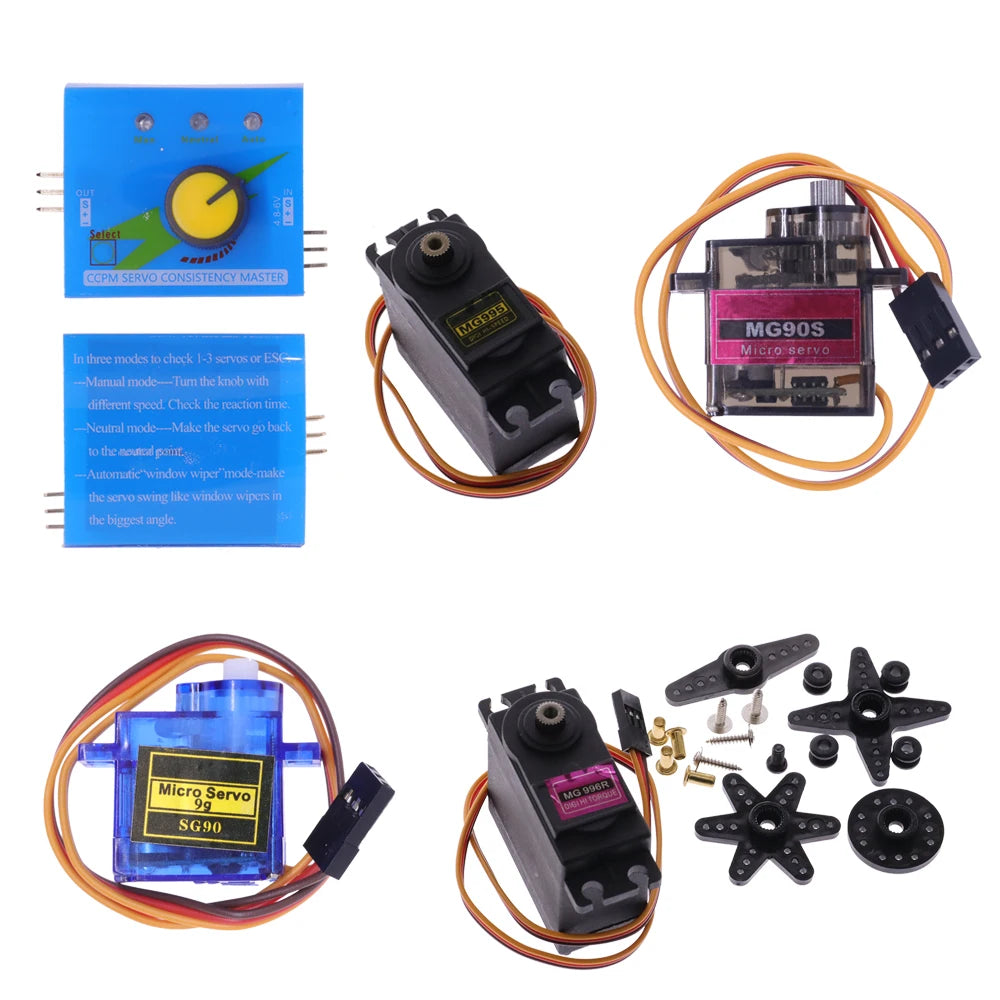

Package Contents
- 1 Servo Motor (Selected Model)
- 1 Set of Servo Horns (Arms)
- 1 Set of Mounting Screws
Pro-Tip for High-Torque Models
When using the MG995 or MG996R, we strongly recommend using an external 5V-6V power supply rather than powering directly from an Arduino's 5V pin. These motors can draw over 1A under load, which may cause your microcontroller to reset or sustain damage.
