SN-58B Ratcheting Crimping Tool

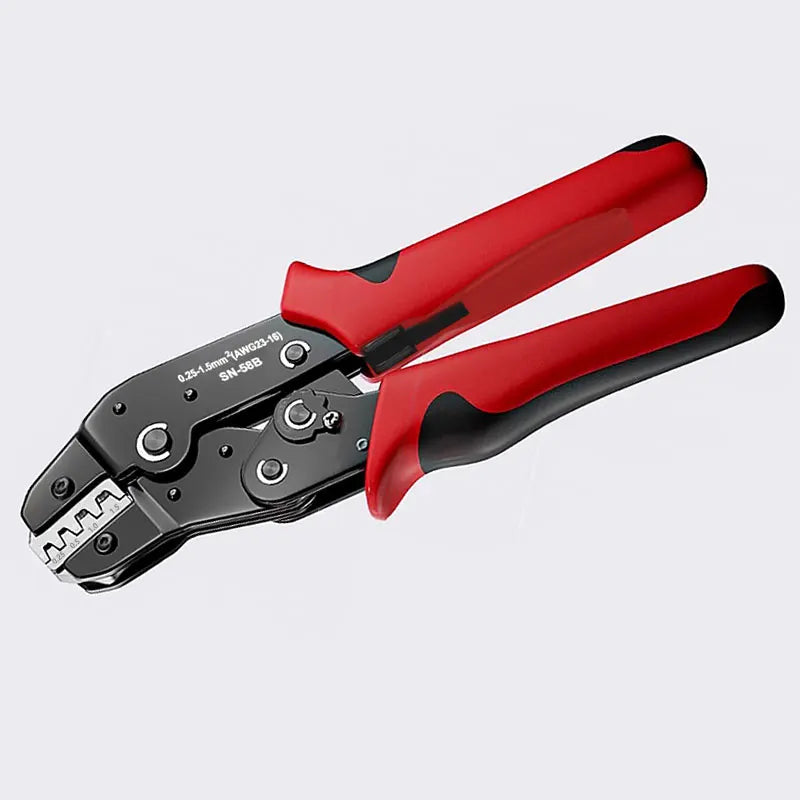

The SN-58B is a ratcheting hand tool designed for crimping non-insulated open-plug terminals. It covers a combined range similar to the SN-28B and SN-48B, making it a single tool for various common wire-to-board connectors. It uses a standard "B-crimp" style to secure the wire and insulation in one motion, suitable for 3D printer wiring, PC fan connectors, and internal electronics cables.
Product Features
- Ratcheting mechanism holds the terminal in place and only releases once a full crimp is made.
- Adjustable tension wheel to increase or decrease crimping force as needed.

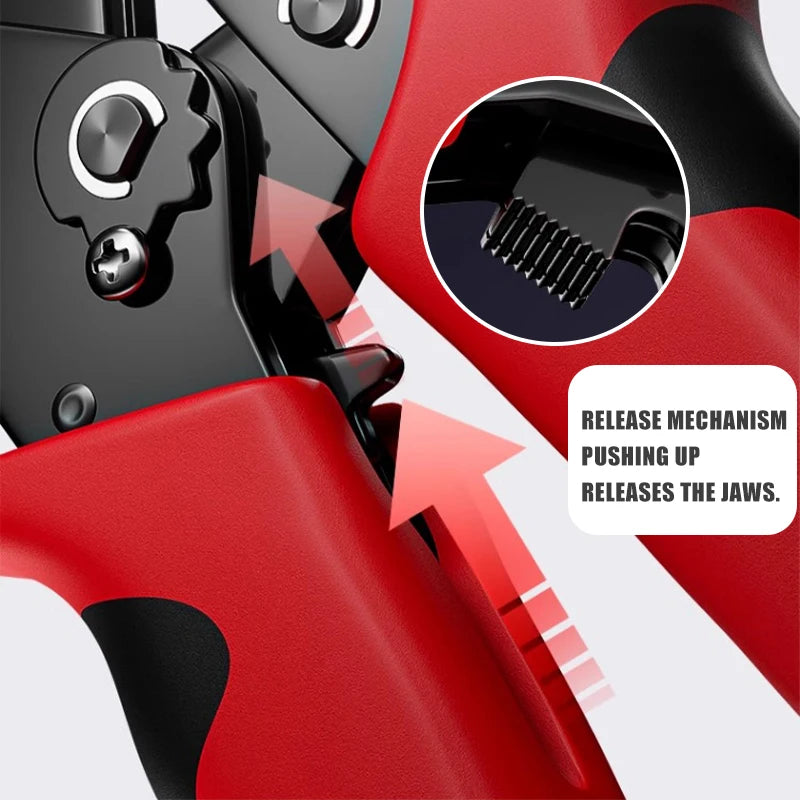

- Equipped with a quick-release lever to open the jaws if a terminal gets stuck.
- Double-hinge design reduces the physical force required to complete a crimp.
- Works with common 2.54mm and 2.0mm pitch connectors found in hobby electronics.
Technical Specifications
- Model: SN-58B

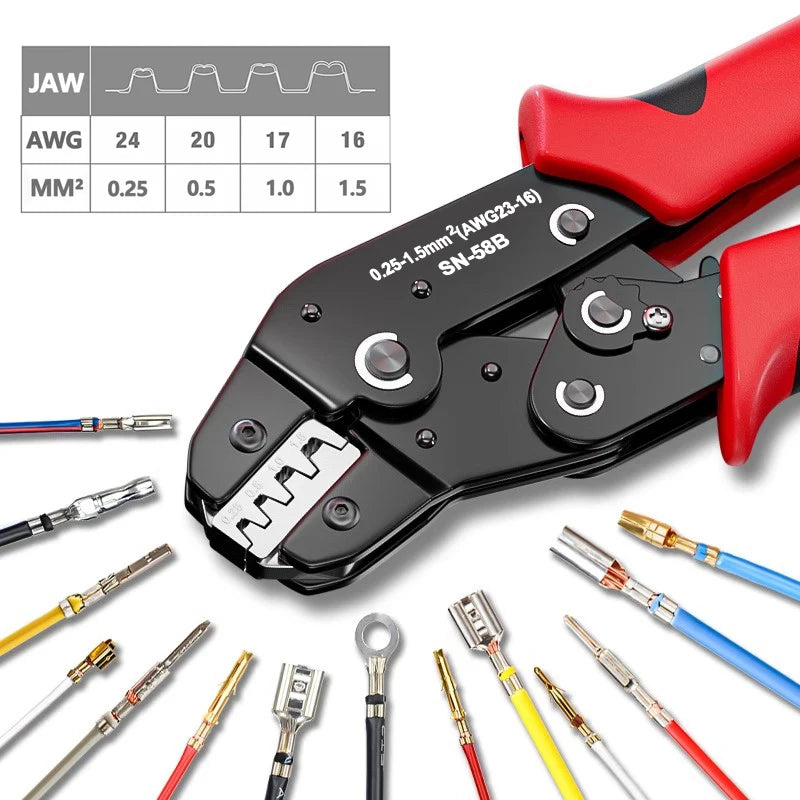

- Crimping Range: 0.25 - 1.5mm²
- Wire Gauge: 24 - 16 AWG
- Material: Carbon Steel with plastic grip handles
- Crimp Style: Non-insulated Open-Plug (Tab)

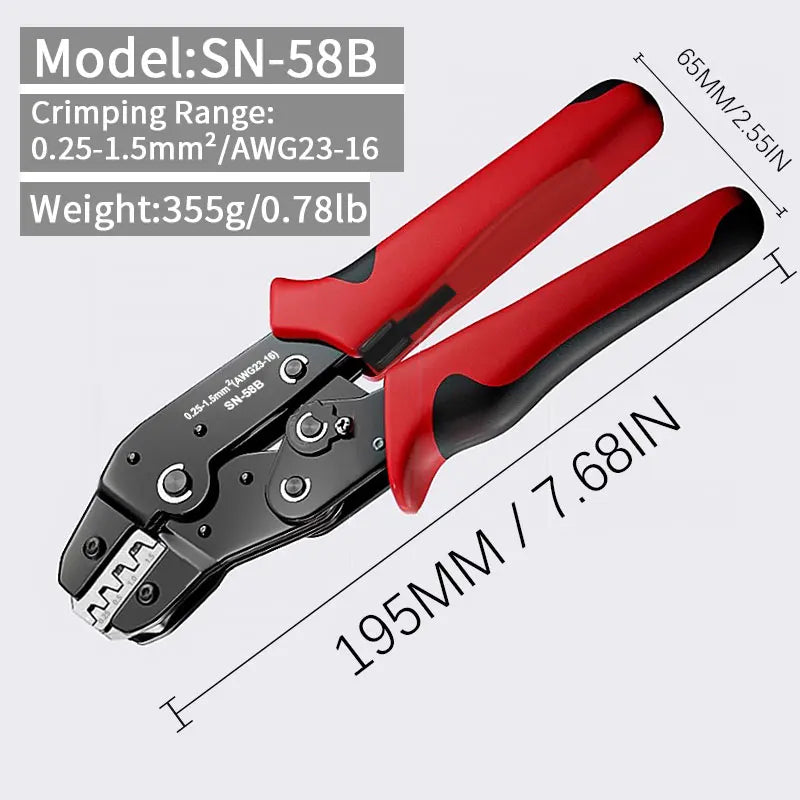

- Length: 190mm
- Weight: 350g
Compatible Connectors

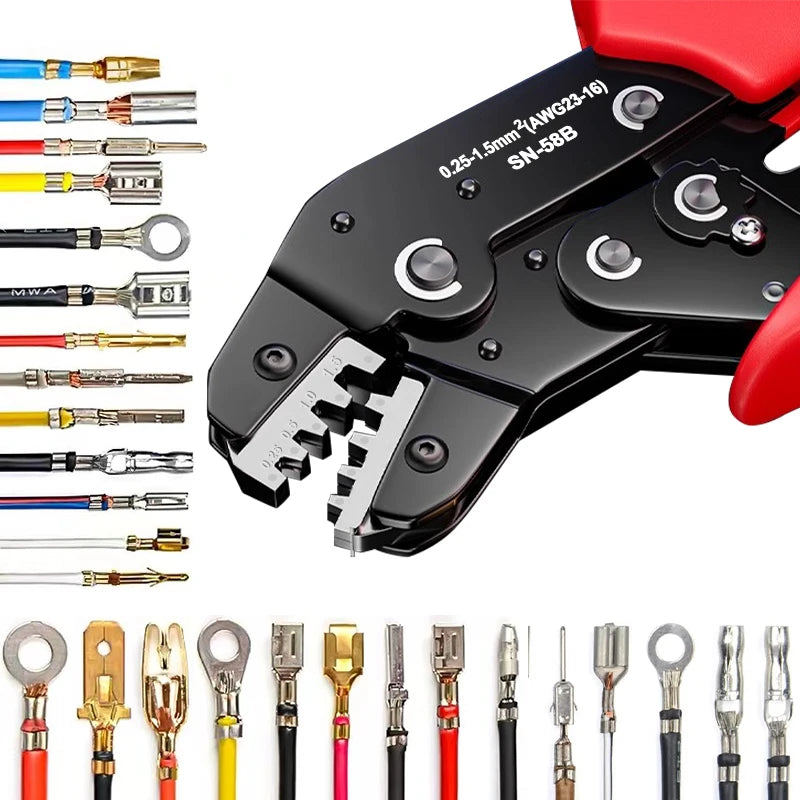

- Dupont: 2.54mm pitch
- JST: XH (2.5mm), PH (2.0mm), VH (3.96mm)
- Molex: KK series, Micro-Fit 3.0
- PC Connectors: ATX, EPS, and SATA power pins
Package Contents
- 1 SN-58B Crimping Tool
