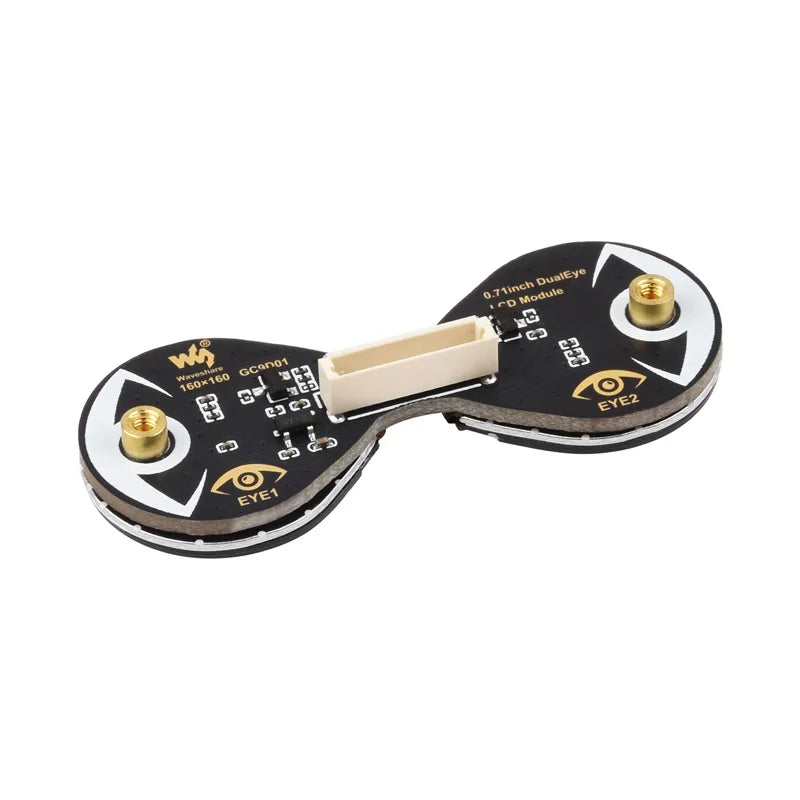

Waveshare 0.71" Double Eye Round LCD Display Module

Waveshare 0.71 Inch Double Eye Round LCD Display Module

The Waveshare 0.71" Double Eye Round LCD Display Module is a specialized dual-screen solution designed for binocular applications such as VR headsets, smart goggles, and medical instruments. It features two circular 0.71-inch LCD panels with high pixel density and vibrant color reproduction. The module is engineered for seamless integration, using a single interface to drive both displays simultaneously, ensuring perfectly synchronized visual output for stereoscopic or dual-view projects.

Product Features

• Dual 0.71-inch circular LCD panels integrated onto a single driver board.
• High-resolution display for crisp and detailed image quality in a small form factor.
• IPS panel technology providing wide viewing angles and accurate color representation.
• Synchronized video output for both screens, ideal for binocular and VR applications.
• Communicates via a standard SPI interface, making it compatible with Raspberry Pi, ESP32, and Arduino.
• Ultra-compact and lightweight design for head-mounted or handheld devices.
• Integrated backlight control for power management and brightness adjustment.

Technical Specifications

• Display Size: 0.71 inch (per screen)
• Resolution: 480 x 480 pixels
• Interface: SPI
• Display Type: IPS
• Display Color: RGB 65K Colors
• Driver Chip: GC9503V
• Operating Voltage: 3.3V
• Module Dimensions: 55.0 x 30.5 mm

Package Contents

• 1 Waveshare 0.71 inch Double Eye Round LCD Module
• 1 PH2.0 8-pin Connecting Cable
