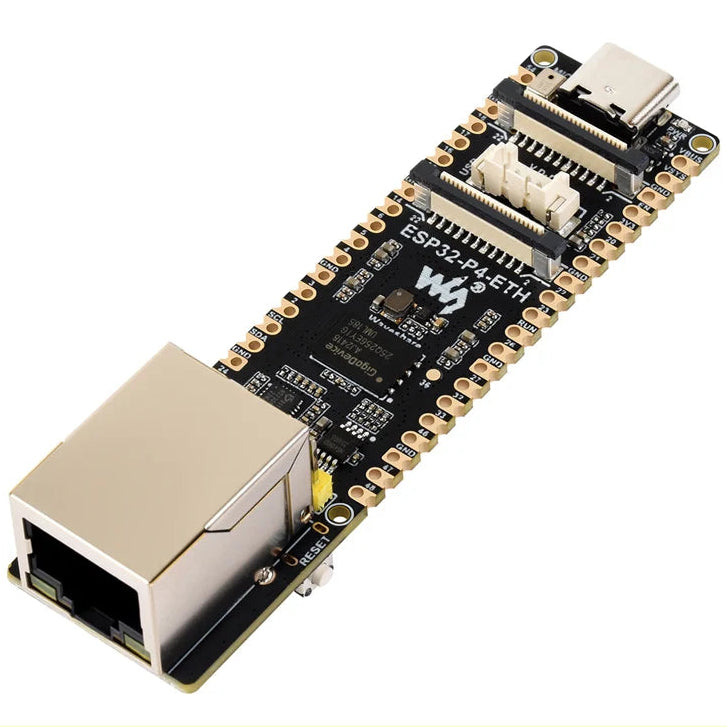

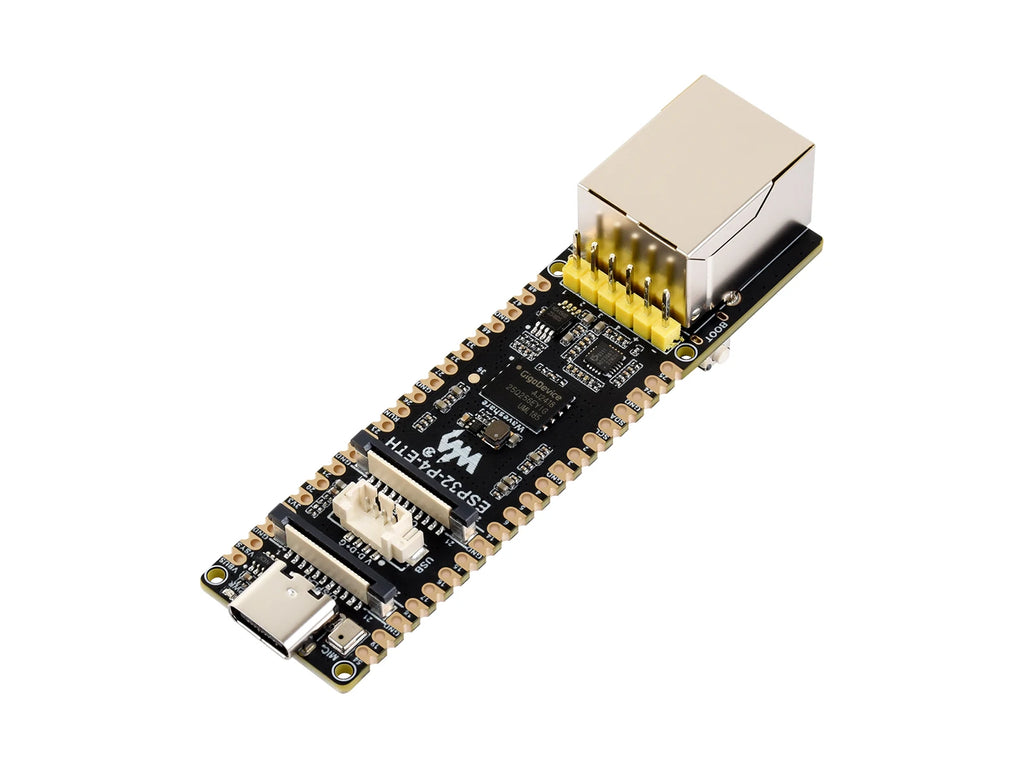

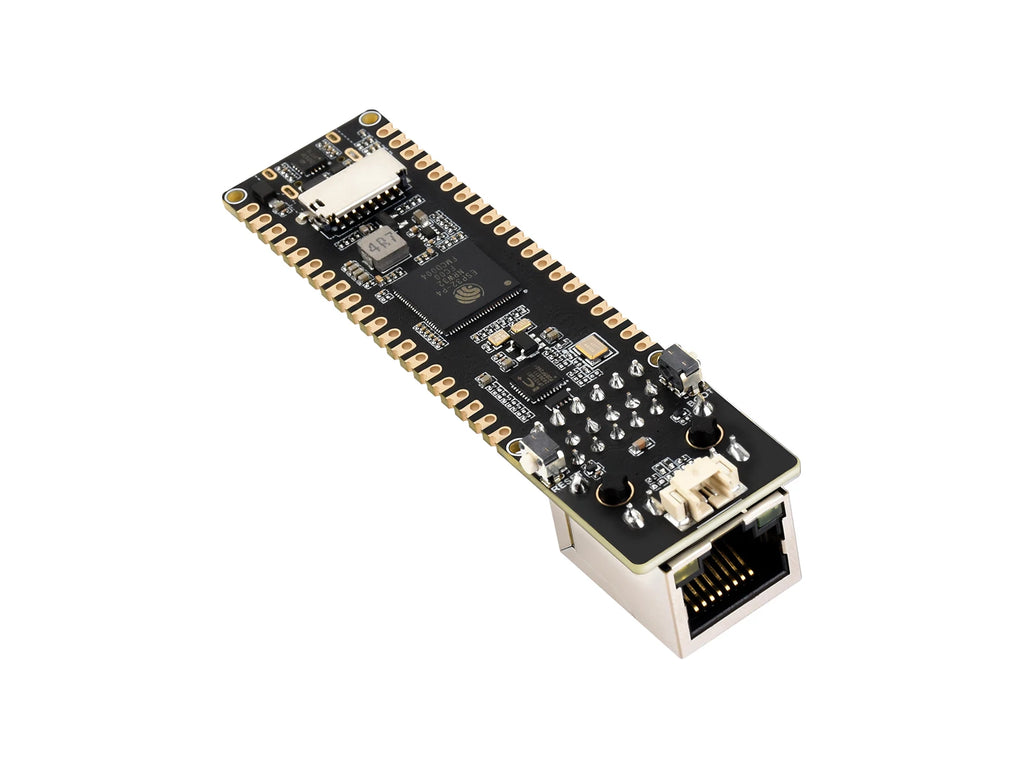

Waveshare ESP32-P4-ETH Development Board
The Waveshare ESP32-P4-ETH is a high-performance development board built around the ESP32-P4 RISC-V dual-core processor. Designed for applications requiring high computing power and wired connectivity, this board features integrated Ethernet support and multiple high-speed peripherals. It is an ideal solution for industrial gateways, smart home hubs, and multimedia applications where stable, wired networking is a priority.
Product Features
- ESP32-P4 dual-core RISC-V processor with a clock frequency up to 400MHz.
- Integrated 10/100M Ethernet port for stable wired network connectivity.
- Supports MIPI CSI and MIPI DSI interfaces for camera and display integration.
- Built-in MicroSD card slot for external storage and data logging.
- Extensive I/O expansion through 2.54mm pitch headers for sensors and modules.
- Onboard USB Type-C port for power, programming, and debugging.
- Dedicated hardware encryption and security features for industrial-grade applications.
Technical Specifications
- Microcontroller: ESP32-P4 (RISC-V Dual-Core)
- SRAM: 768KB Internal (Supports external PSRAM expansion)
- Ethernet: 10/100Mbps PHY
- Display Interface: 2-lane MIPI DSI
- Camera Interface: 2-lane MIPI CSI
- Operating Voltage: 5V (via USB or headers)
- Logic Level: 3.3V

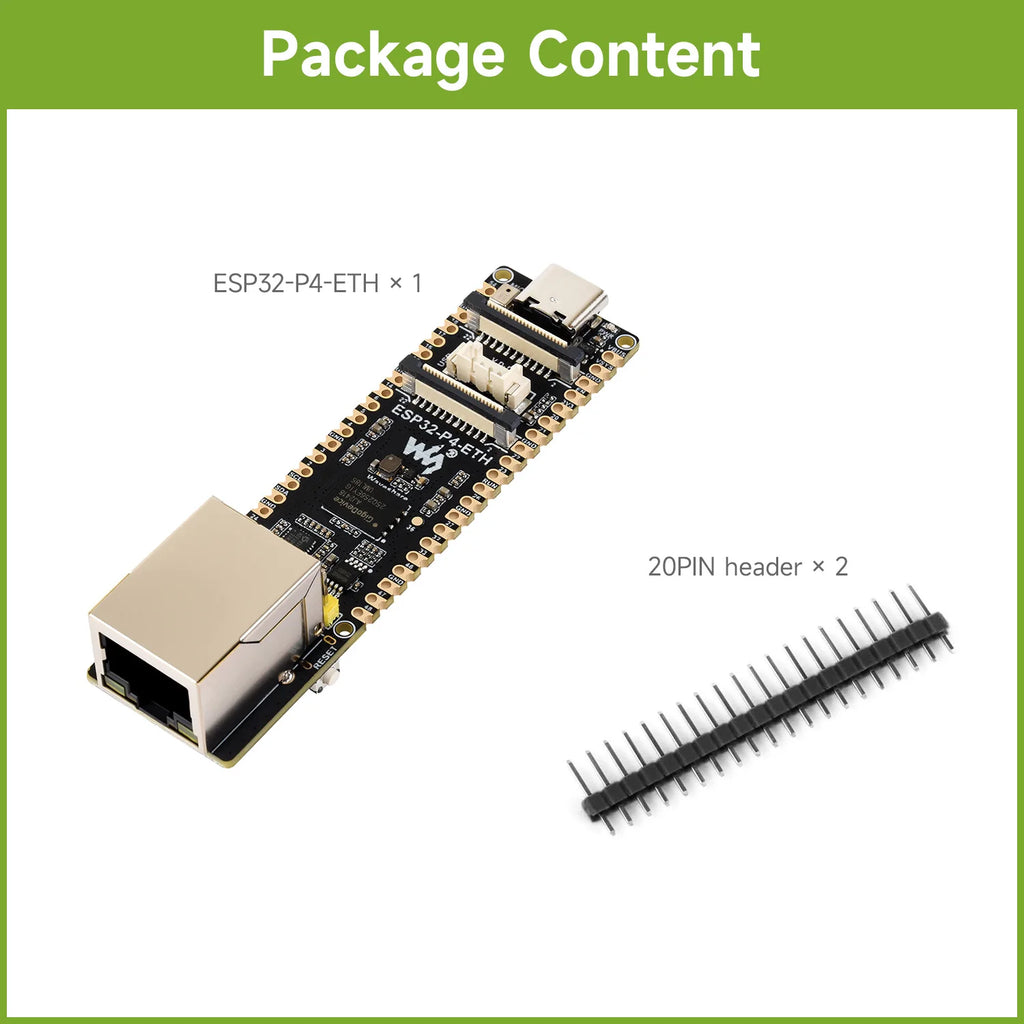

Package Contents
- 1 Waveshare ESP32-P4-ETH Development Board
- 1 Header Pin Set
