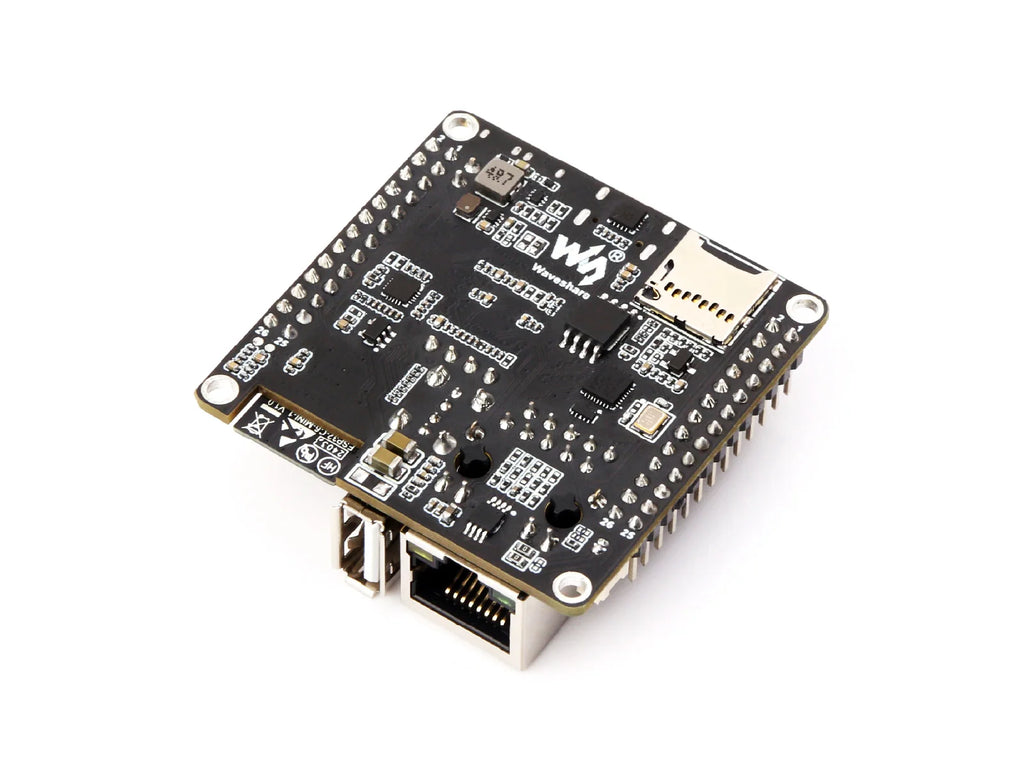

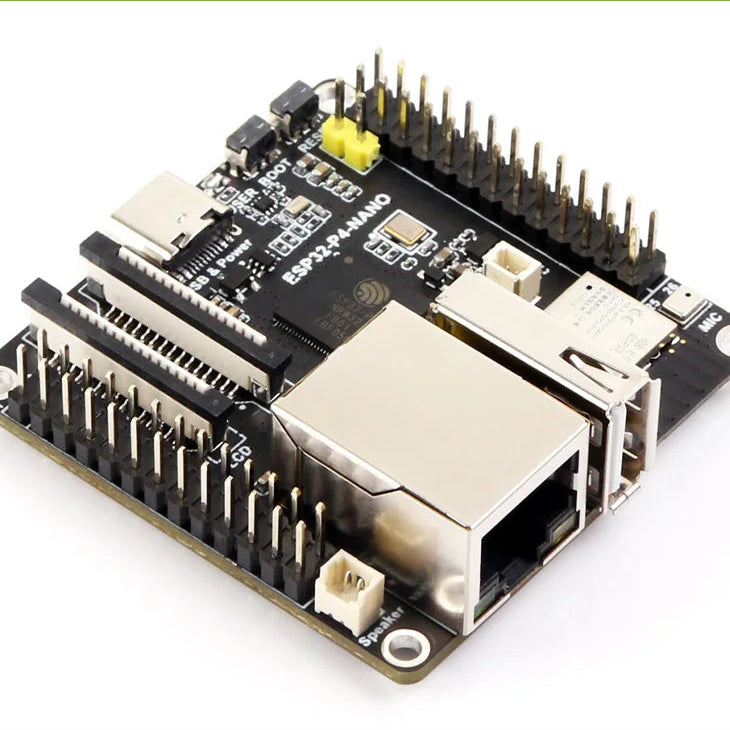

Waveshare ESP32-P4-NANO Development Board
The Waveshare ESP32-P4-NANO is a high-performance development board designed around the ESP32-P4 RISC-V dual-core processor, reaching speeds up to 400MHz. This "Nano" version is optimized for multimedia and high-speed applications, featuring dedicated hardware for image and video processing. It is an excellent choice for developers working on advanced human-machine interfaces (HMI), smart cameras, and high-speed USB devices.
Product Features
- Powered by the ESP32-P4 RISC-V dual-core processor with a secondary LP-core for power management.
- Includes 16MB of high-speed PSRAM and 16MB of Flash memory for demanding applications.
- Features dual-lane MIPI DSI and MIPI CSI interfaces for high-resolution displays and cameras.
- Onboard USB 2.0 High-Speed controller for fast data transfer and peripheral support.
- Integrated MicroSD card slot for expanded storage and media playback.
- Supports hardware-level encryption and security features including secure boot and flash encryption.
- Rich peripheral set including 12-bit ADC, multiple UART, SPI, and I2C channels.
- USB Type-C interface for easy power, programming, and debugging.
Technical Specifications
- Microcontroller: ESP32-P4 (RISC-V Dual-Core @ 400MHz)
- PSRAM: 16MB
- Flash: 16MB
- Display Support: MIPI DSI (2-lane)
- Camera Support: MIPI CSI (2-lane)
- USB: USB 2.0 High-Speed
- Operating Voltage: 5V (via USB or VIN)
- Logic Level: 3.3V
Package Contents
- 1 Waveshare ESP32-P4-NANO Development Board
- 2 20-pin Black Header Set
