Waveshare ESP32-S3 1.54" 200x200 e-Paper Development Board

Waveshare ESP32-S3 1.54 Inch e-Paper Development Board

This development board integrates an ESP32-S3 microcontroller with a 1.54 inch e-Paper display, offering a low-power solution for wireless driving applications. The 200x200 resolution electronic paper display provides a paper-like viewing experience with wide viewing angles and high contrast, making it ideal for price tags, shelf labels, and industrial instruments.

Product Features

• Equipped with ESP32-S3 series Xtensa 32-bit LX7 dual-core processor.
• Supports 2.4GHz Wi-Fi and Bluetooth LE 5.0 for versatile wireless connectivity.
• 1.54 inch e-Paper display with 200x200 resolution and 170 degree viewing angle.
• Ultra-low power consumption with the ability to maintain content without power.
• Onboard battery header and recharge manager for portable power solutions.
• Universal 2.54mm pitch headers for easy integration with other peripherals.

Technical Specifications

• Microcontroller: ESP32-S3
• Display Size: 1.54 inch
• Resolution: 200 x 200 pixels
• Display Color: Black and White
• Interface: SPI for display, USB Type-C for programming
• Operating Voltage: 3.3V to 5V
• Partial Refresh Support: Yes

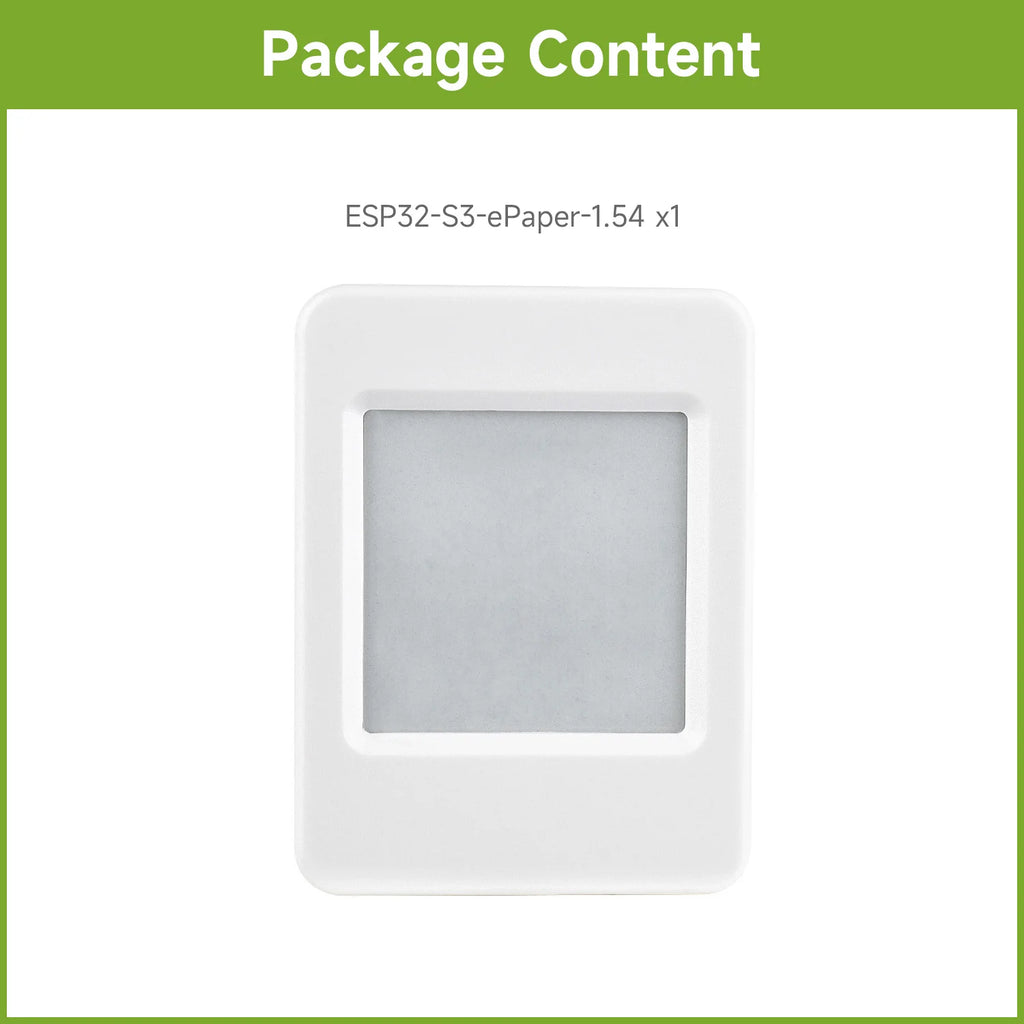

Package Contents

• 1 Waveshare ESP32-S3 1.54 inch e-Paper Board
• 1 Screws and Standoffs Pack
